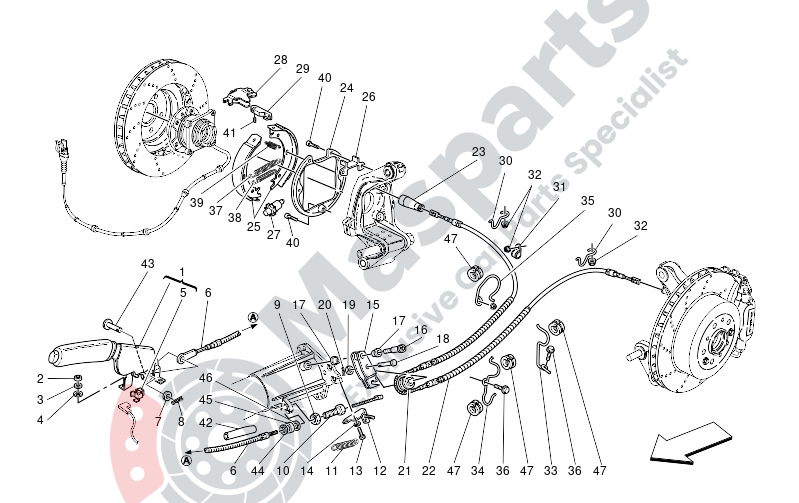

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-206732 | Cpl Parking Brake Lever |
€376,28 |
|
|
| 2 | M-16104421 | Nylon Stop Hex. Nut M8 |
€1,30 |
|
|
| 3 | M-14496521 | Split Washer D. 8.40-17X1 |
€1,30 |
|
|
| 4 | M-12628924 | Split Washer D.2 8.4 -25X 4 |
€2,23 |
|
|
| 5 | M-176118 | Parking Brake Micro Lever As |
€56,40 |
|
|
| 6 | M-200778 | Parking Brake Front Cable |
€54,61 |
|
|
| 7 | M-12646604 | Washer |
€1,67 |
|
|
| 8 | M-10734101 | Split Pin D. 16X12 |
€5,34 |
|
|
| 9 | M-10726824 | Nut For Emergency Brake C |
€3,81 |
|
|
| 10 | M-185282 | Parking Brake Cable Puller |
€25,85 |
|
|
| 12 | M-186208 | Spring Latching Bracket |
€9,84 |
|
|
| 13 | M-10902024 | Hex Head Screw M 6X 12 |
€1,08 |
|
|
| 16 | M-185278 | Pulley Lever Pin |
€17,76 |
|
|
| 17 | M-175729 | S-Lubricat. Flanged Bushing |
€7,73 |
|
|
| 18 | M-10050811 | Flat Head Pin D. 8X22 With H |
€6,53 |
|
|
| 19 | M-10519601 | Split Washer.D. 8.15-17 X 2 |
€1,30 |
|
|
| 20 | M-10734301 | Split Pin D. 2 X18 |
€0,84 |
|
|
| 21 | M-188587 | Transm.Pulley For Park.Brake |
€13,16 |
|
|
| 22 | M-194875 | Parking Brake Rear Cable |
€87,72 |
|
|
| 23 | M-143938 | Stop Sheath |
€21,99 |
|
|
| 24 | M-186574 | Brake Shoe Housing |
€63,39 |
|
|
| 25 | M-248418 | Hand Brake Shoe With Lining |
€114,75 |
|
|
| 26 | M-190814 | Reaction Small Plate D.I.H. |
€61,55 |
|
|
| 27 | M-186572 | Adjustment Device |
€88,04 |
|
|
| 28 | M-190782 | Parking Brake Lever |
€29,62 |
|
|
| 30 | M-186933 | Spring For Rh Side Brake Cab |
€1,71 |
|
|
| 31 | M-10441190 | Bracket With Sheath |
€0,95 |
|
|
| 32 | M-14058411 | Nut |
€1,46 |
|
|
| 34 | M-204536 | Spring. |
€5,70 |
|
|
| 35 | M-204537 | Spring. |
€3,58 |
|
|
| 36 | M-11730624 | Screw For Front Hood Safe |
€2,09 |
|
|
| 37 | M-190776 | Long Traction Spring |
€21,39 |
|
|
| 38 | M-190779 | Short Traction Spring |
€58,65 |
|
|
| 39 | M-190780 | Fastening Spring |
€5,95 |
|
|
| 40 | M-190870 | Screw M6X14 |
€3,34 |
|
|
| 41 | M-101282 | Pin For Parking Brake Shoe |
€56,67 |
|
|
| 43 | M-200774 | Pin Fastening H.Brake Front |
€7,27 |
|
|
| 45 | M-204413 | Rubber Spacer |
€4,88 |
|
|
| 47 | M-184519 | Rubber Pad |
€2,06 |
|
