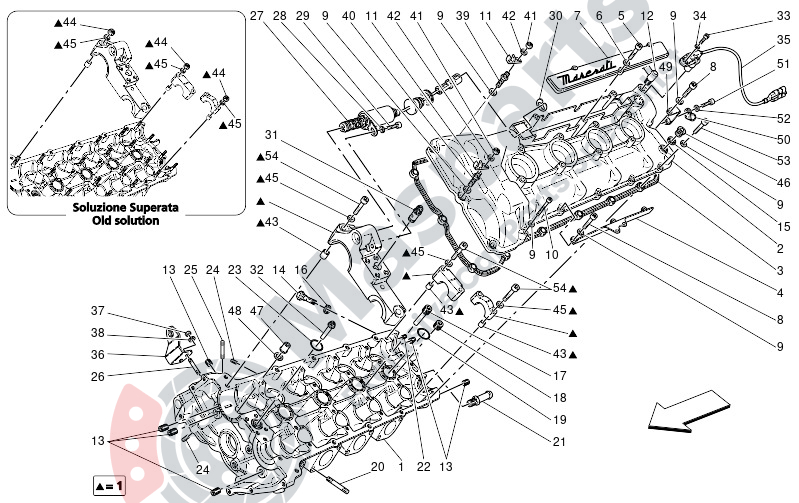

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-198928 | Lh Head Cover Gasket |
$56.56 |
|
|
| 5 | M-14304424 | Socket Head Screw M 5X 25 |
$3.91 |
|
|
| 6 | M-14497878 | Split Washer D. 5.30X9.55 |
$1.06 |
|
|
| 8 | M-156834 | Socket Head Screw M 6X 30 |
$2.18 |
|
|
| 9 | M-11197774 | Washer |
$2.23 |
|
|
| 10 | M-156830 | Socket Head Screw M 6X 40 |
$3.91 |
|
|
| 11 | M-187713 | Clip |
$5.07 |
|
|
| 12 | M-124342 | Threaded Union In The L.H.He |
$8.05 |
|
|
| 13 | M-14326050 | Tapered Threaded Plug 10X1.2 |
$1.53 |
|
|
| 14 | M-180267 | Oil Nonreturn Valve |
$40.82 |
|
|
| 15 | M-10263360 | Gasket 20- 26X 1 |
$0.98 |
|
|
| 16 | M-10261060 | Gasket 12- 16X 1.5 |
$1.16 |
|
|
| 17 | M-183447 | Tapered Threaded Plug M18X1. |
$6.46 |
|
|
| 18 | M-164400 | Tapered Threaded Plug D.16X1 |
$6.61 |
|
|
| 19 | M-187706 | Spark Plug Sleeve Gasket |
$4.61 |
|
|
| 20 | M-13543424 | Stud M8X16 Stem 28 |
$1.71 |
|
|
| 21 | M-191633 | Threaded Union M18X1.5 |
$68.44 |
|
|
| 22 | M-14326150 | Tapered Threaded Plug D.8X1. |
$0.98 |
|
|
| 23 | M-134233 | O-Ring D. D. 18.77- 8X 100 |
$7.21 |
|
|
| 25 | M-13541224 | Stud M6X12 Stem 22 |
$43.36 |
|
|
| 26 | M-13516624 | Threaded Stud |
$0.98 |
|
|
| 27 | M-212423 | Solenoid Valve Variator Cont |
$582.76 |
|
|
| 28 | M-11197774 | Washer |
$2.23 |
|
|
| 29 | M-14433124 | Screw For Cam Cover Assem |
$1.71 |
|
|
| 30 | M-11087376 | 3-Point Circlip D.12 |
$0.98 |
|
|
| 31 | M-184681 | Oil Pressure Check Valve |
$93.21 |
|
|
| 33 | M-14305724 | Screw |
$1.71 |
|
|
| 34 | M-11197774 | Washer |
$2.23 |
|
|
| 35 | M-177673 | Timing Sensor |
$176.78 |
|
|
| 36 | M-187142 | Bracket |
$22.91 |
|
|
| 37 | M-16100814 | Nut For Rear Differential |
$1.71 |
|
|
| 38 | M-11193874 | Washer |
$1.35 |
|
|
| 39 | M-187710 | Wiring And Cover Fastening S |
$9.26 |
|
|
| 42 | M-12639724 | Washer |
$1.35 |
|
|
| 43 | M-102725 | Centring Dowel D.8X8 |
$1.72 |
|
|
| 44 | M-15896211 | Nut |
$1.08 |
|
|
| 45 | M-11197774 | Washer |
$2.23 |
|
|
| 46 | M-187963 | Plug |
$5.13 |
|
|
| 50 | M-10441190 | Bracket With Sheath |
$1.11 |
|
|
| 51 | M-14305024 | Screw. |
$1.52 |
|
|
| 52 | M-10519424 | Split Washer.D. 6.40-11.95 X |
$1.19 |
|
|
| 53 | M-157218 | Socket Head Screw M 6X 25 |
$1.98 |
|
|
| 54 | M-14305621 | Screw |
$1.71 |
|
