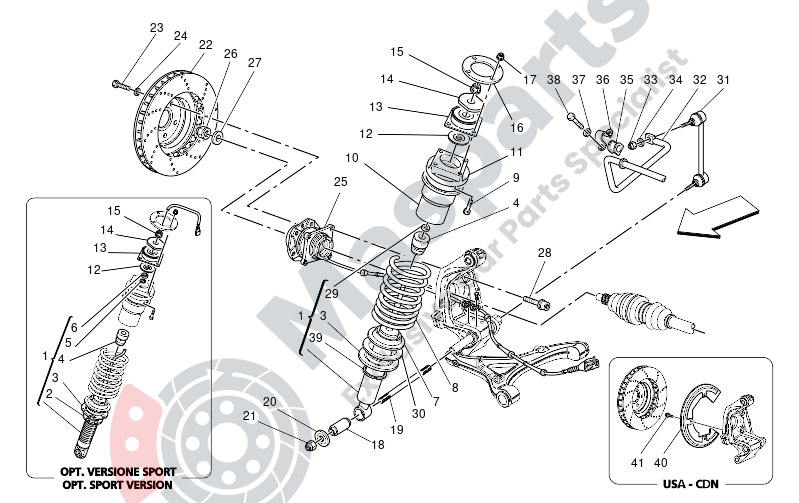

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 4 | M-197897 | Shock Absorber Rubber Bushin |
$160.97 |
|
|
| 5 | M-183594 | Rod Circlip |
$33.59 |
|
|
| 6 | M-183595 | Shock Absorber Rod Bushing |
$49.88 |
|
|
| 8 | M-197896 | Rear Spring |
$192.58 |
|
|
| 9 | M-16044324 | Hex Head Screw M 8X55 |
$1.82 |
|
|
| 10 | M-188995 | Spring Upper Spacer D.75.5-1 |
$10.61 |
|
|
| 12 | M-183016 | Split Washer D.6.45-60 |
$18.85 |
|
|
| 15 | M-203795 | Nut. |
$5.47 |
|
|
| 17 | M-14058521 | S-Lock.Hex. Nut M8X8 |
$1.82 |
|
|
| 18 | M-194971 | Rear Shock-Absorber Silent Block |
$14.24 |
|
|
| 19 | M-13531734 | Stud M12X1.25X18 Stem |
$23.53 |
|
|
| 20 | M-387000329 | Washer 12 X 42.5 X 2.5 |
$4.98 |
|
|
| 22 | M-192996 | Toothed Brake Disc |
$229.65 |
|
|
| 23 | M-16043421 | Hex Head Screw M 8X20 |
$3.40 |
|
|
| 24 | M-10571779 | Washer |
$1.48 |
|
|
| 25 | M-197064 | Wheel Bearing With Hub |
$695.95 |
|
|
| 26 | M-183320 | Flanged Hex.Nut M28X1.5 |
$7.03 |
|
|
| 27 | M-196577 | Machined Washer D. 28.2-42 X |
$13.45 |
|
|
| 28 | M-190723 | Socket Head Screw M10X10.25. |
$17.74 |
|
|
| 29 | M-386600329 | Bushing Mount Spacer |
$24.36 |
|
|
| 30 | M-386601397 | Shim For Lower Disc Platesh. |
$5.57 |
|
|
| 31 | M-193729 | Small Link |
$78.09 |
|
|
| 33 | M-12575621 | Nylon Stop Hex. Nut M10X1.25 |
$1.82 |
|
|
| 34 | M-13550421 | Split Washer D.10.2 -20X2 |
$1.91 |
|
|
| 36 | M-397050368 | U-Bolt For Bushing |
$3.95 |
|
|
| 37 | M-10571779 | Washer |
$1.48 |
|
|
| 38 | M-16043321 | Hex Head Screw M 8X18 |
$1.31 |
|
|
| 40 | M-193733 | Rh Rear Brake Disk Cover |
$53.23 |
|
|
| 41 | M-190870 | Screw M6X14 |
$3.93 |
|
