Diagram image not available

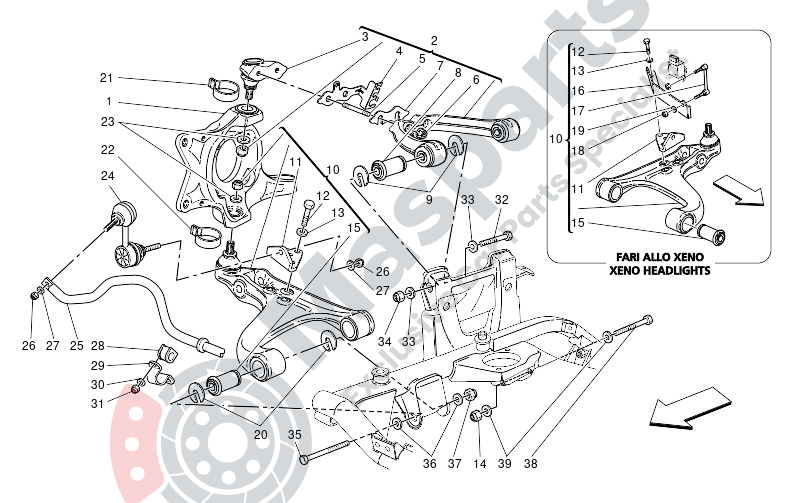

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-197754 | Cpl. Front Rh Hub Carrier |
$888.84 |
|
|
| 2 | M-185949 | Front Suspension Upper Arm |
$1,096.04 |
|
|
| 3 | M-386600129 | Joint For Front Upper Lever |
$249.42 |
|
|
| 4 | M-190691 | Bracket |
$13.97 |
|
|
| 6 | M-14058521 | S-Lock.Hex. Nut M8X8 |
$1.85 |
|
|
| 9 | M-386600429 | Shimming Washer Mm 3. |
$2.59 |
|
|
| 11 | M-186347 | Torsion Bar Tie-Rod Support |
$35.37 |
|
|
| 13 | M-14496524 | Washer |
$1.70 |
|
|
| 15 | M-386600113 | Flanblock 14 X 34 X 61 |
$180.25 |
|
|
| 17 | M-188629 | Tie Rod For Light Adjusting |
$31.34 |
|
|
| 18 | M-12574215 | Nylon Stop Hex. Nut M6 |
$1.53 |
|
|
| 19 | M-14498805 | Washer For Sway Bar End L |
$1.50 |
|
|
| 20 | M-377030382 | Washer Shim 3+-0.1 |
$6.40 |
|
|
| 21 | M-386600416 | Joint Upper Protection |
$5.66 |
|
|
| 22 | M-160019 | Joint Lower Protection |
$5.14 |
|
|
| 23 | M-386600403 | Washer For Hub Joint Nuts |
$8.43 |
|
|
| 24 | M-185914 | L.75Rh Tie-Rod For Torsion B |
$170.41 |
|
|
| 26 | M-12575621 | Nylon Stop Hex. Nut M10X1.25 |
$1.85 |
|
|
| 27 | M-13550421 | Split Washer D.10.2 -20X2 |
$1.94 |
|
|
| 28 | M-208324 | Bar Punch D.27X43 |
$28.15 |
|
|
| 30 | M-14496524 | Washer |
$1.70 |
|
|
| 31 | M-104030 | Nut For Sway Bar Bushing |
$1.70 |
|
|
| 32 | M-15541521 | Hex Head Screw M 12X1.25X |
$3.49 |
|
|
| 33 | M-14496721 | Split Washer D. 13 -24X2 |
$1.70 |
|
|
| 34 | M-15503811 | Nylon Stop Hex.Nut M12X1.25 |
$1.50 |
|
|
| 35 | M-196071 | Hex Head Screw M 14X1.5X100 |
$5.87 |
|
|
| 36 | M-14496825 | Split Washer D. 15 -28X2 |
$1.50 |
|
|
| 37 | M-15503915 | Nylon Stop Hex.Nut M14X1.5 |
$2.27 |
|
|
| 38 | M-189137 | Rear Screw Fast.Frontlower L |
$25.17 |
|
|
| 39 | M-13579861 | Washer |
$19.73 |
|
