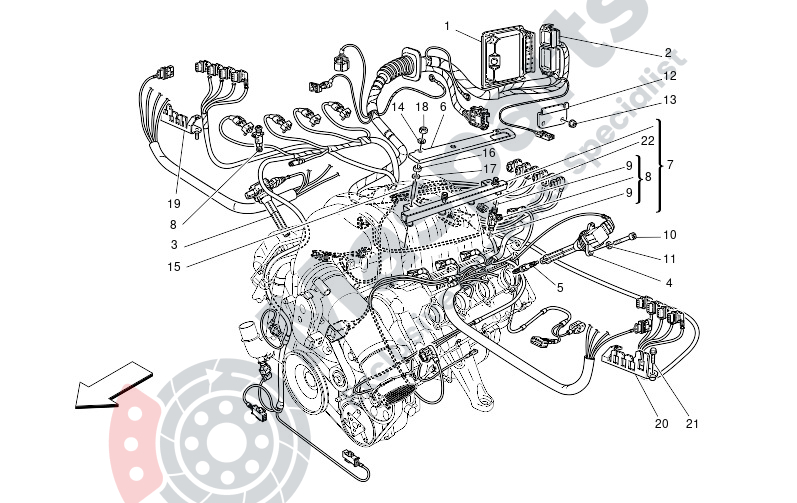

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-180251 | Ignition Ecu |
€1.798,26 |
|
|
| 2 | M-196332 | Ignition Cable Spyder |
€1.636,58 |
|
|
| 3 | M-188504 | Single Ignition Coil |
€130,72 |
|
|
| 4 | M-186914 | Single Ignition Coil |
€130,72 |
|
|
| 5 | M-192637 | Ngk-Pmr Spark Plug |
€18,83 |
|
|
| 6 | M-189123 | Rh Fuel Pipe Cover |
€25,58 |
|
|
| 9 | M-133902 | O-Ring D.7.8X3.6 |
€8,65 |
|
|
| 10 | M-14305324 | Screw |
€1,46 |
|
|
| 11 | M-11197774 | Washer |
€1,89 |
|
|
| 13 | M-14084211 | Nut |
€1,46 |
|
|
| 14 | M-11193874 | Washer |
€1,15 |
|
|
| 16 | M-16102314 | Nut |
€1,46 |
|
|
| 17 | M-12604474 | Washer |
€1,15 |
|
|
| 18 | M-14042321 | S-Locking Hex.Cap Nut M8 |
€1,58 |
|
|
| 19 | M-190009 | Support Brake For Coil Wirin |
€14,17 |
|
|
| 20 | M-190010 | Support Brake For Coil Wirin |
€14,17 |
|
|
| 21 | M-18750121 | Screw |
€3,34 |
|
|
| 22 | M-144730 | Injector Retaining Clip |
€4,88 |
|
