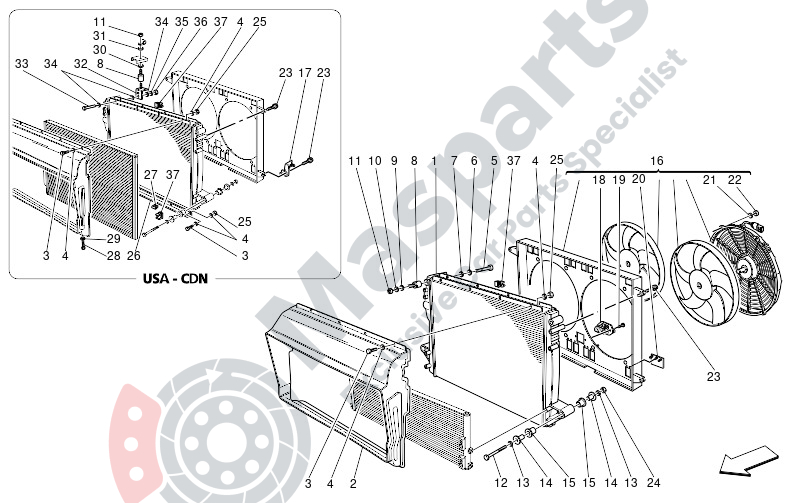

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-181097 | Water Radiator |
€418,20 |
|
|
| 2 | M-199893 | Air Ductradiator Side |
€156,40 |
|
|
| 3 | M-10977724 | Screw |
€1,30 |
|
|
| 4 | M-13579101 | Washer |
€1,02 |
|
|
| 5 | M-14308921 | Socket Head Screw M8X60 Znt |
€1,58 |
|
|
| 6 | M-12601379 | Washer |
€1,15 |
|
|
| 7 | M-12646724 | Washer |
€1,46 |
|
|
| 8 | M-181114 | Rubber Pad |
€10,40 |
|
|
| 9 | M-12647024 | Washer For Radiator Assem |
€2,50 |
|
|
| 11 | M-16100814 | Nut For Rear Differential |
€1,46 |
|
|
| 12 | M-16044824 | Screw |
€2,09 |
|
|
| 13 | M-12646724 | Washer |
€1,46 |
|
|
| 14 | M-181111 | Bushing |
€6,72 |
|
|
| 15 | M-181110 | Rubber Bushing |
€1,86 |
|
|
| 16 | M-221254 | Cpl Hood With Electric Fan |
€663,06 |
|
|
| 18 | M-263140 | Electric Fan Resistor 0.23 O |
€77,57 |
|
|
| 19 | M-15688070 | Screw For Resistor Holddo |
€1,30 |
|
|
| 20 | M-373330320 | Rubber Band For Rad. 3013. |
€5,80 |
|
|
| 21 | M-10519401 | Washer |
€1,30 |
|
|
| 22 | M-14048111 | Nut |
€1,30 |
|
|
| 23 | M-15699904 | Screw. |
€1,78 |
|
|
| 24 | M-14058511 | Cup |
€1,46 |
|
|
| 25 | M-14048615 | Nut |
€1,58 |
|
|
| 26 | M-193538 | Air Conveyor Support Bracket |
€21,16 |
|
|
| 27 | M-67257100 | Bracket |
€1,46 |
|
|
| 28 | M-10977724 | Screw |
€1,30 |
|
|
| 29 | M-13579101 | Washer |
€1,02 |
|
|
| 30 | M-12647024 | Washer For Radiator Assem |
€2,50 |
|
|
| 31 | M-12601374 | Washer |
€1,15 |
|
|
| 33 | M-16044524 | Screw |
€1,98 |
|
|
| 34 | M-12646724 | Washer |
€1,46 |
|
|
| 35 | M-12601374 | Washer |
€1,15 |
|
|
| 36 | M-16100814 | Nut For Rear Differential |
€1,46 |
|
|
| 37 | M-379290721 | Clip |
€1,30 |
|
