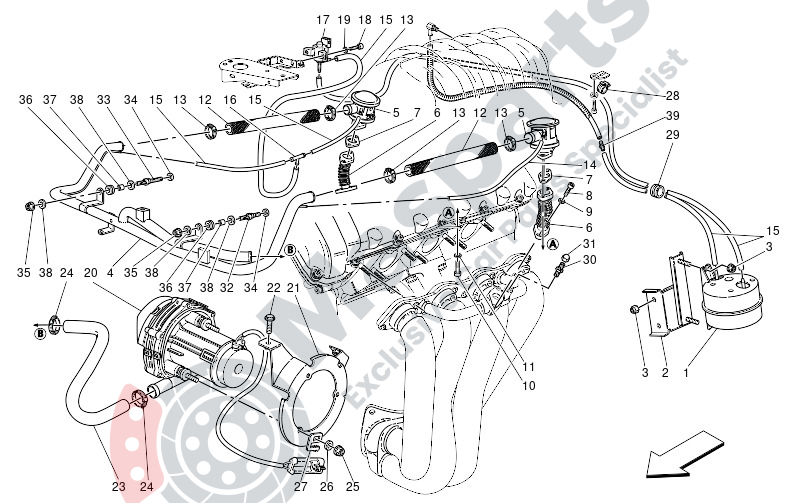

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-330328400 | Vacuum Tank |
$26.32 |
|
|
| 2 | M-66425700 | Vacuum Pump Tank Supp.Bracke |
$105.50 |
|
|
| 3 | M-14059211 | Nut |
$1.50 |
|
|
| 5 | M-171175 | Secondary Air Valve |
$170.43 |
|
|
| 6 | M-186274 | Secondary Air Valve Pipe |
$125.84 |
|
|
| 7 | M-186781 | Gasket For Secondary Air |
$5.23 |
|
|
| 8 | M-14305724 | Screw |
$1.74 |
|
|
| 9 | M-127494 | Washer |
$1.21 |
|
|
| 10 | M-14433124 | Screw For Cam Cover Assem |
$1.74 |
|
|
| 11 | M-127494 | Washer |
$1.21 |
|
|
| 12 | M-155116 | Sleeve Diam.21/28X80 |
$19.35 |
|
|
| 13 | M-178054 | Hose Clamp For Secondary |
$2.48 |
|
|
| 14 | M-147125 | Rubber Hose D. 3- 11.5X 100 |
$13.29 |
|
|
| 15 | M-300100803 | Rubber Hose E 2F-10 8X3.5 9A |
$70.09 |
|
|
| 16 | M-257691 | 3-Wat T Connector |
$1.78 |
|
|
| 17 | M-315769 | On/Off Solenoid Valve |
$66.19 |
|
|
| 18 | M-14304224 | Screw |
$1.74 |
|
|
| 19 | M-12601174 | Washer |
$1.61 |
|
|
| 20 | M-181197 | Secondary Air Pump |
$561.81 |
|
|
| 22 | M-16296924 | Screw |
$2.11 |
|
|
| 23 | M-190992 | Air Pump Pipe And Pipe On En |
$23.49 |
|
|
| 24 | M-178054 | Hose Clamp For Secondary |
$2.48 |
|
|
| 25 | M-102948 | Nut |
$1.74 |
|
|
| 26 | M-12601274 | Washer |
$1.39 |
|
|
| 27 | M-162606 | Clip |
$2.21 |
|
|
| 28 | M-159740 | Cable Fastening Clip D.10 |
$1.00 |
|
|
| 30 | M-152630 | Threaded Union |
$56.63 |
|
|
| 31 | M-150595 | Cap Nut For Secondary Air |
$2.62 |
|
|
| 32 | M-194436 | Front Cover Fastening Stud |
$49.91 |
|
|
| 33 | M-194437 | Front Cover Fastening Stud |
$14.52 |
|
|
| 34 | M-11197774 | Washer |
$2.26 |
|
|
| 38 | M-14498801 | Washer |
$1.21 |
|
|
| 39 | M-313620303 | Union For Turbo |
$1.12 |
|
