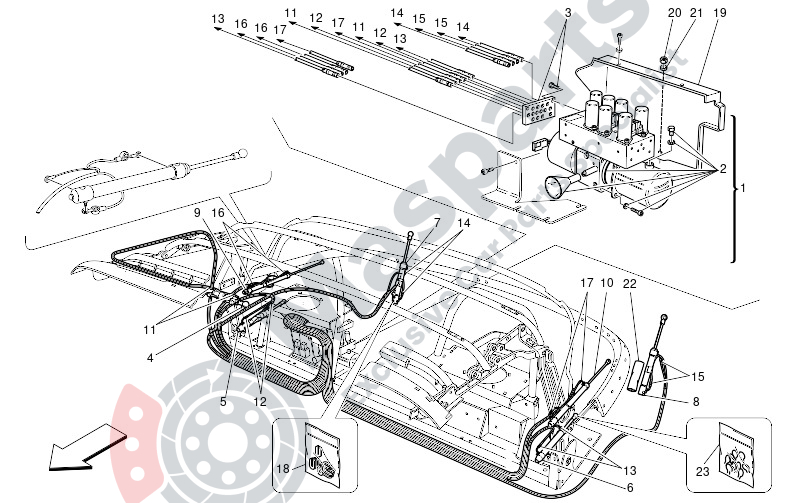

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 4 | M-66662600 | Cross Member Movement Cylind |
€341,70 |
|
|
| 5 | M-66115400 | Elect.Hydr.Cyl. For Soft Top |
€344,25 |
|
|
| 6 | M-66115500 | Elect.Hydr.Cyl. For Soft Top |
€315,35 |
|
|
| 7 | M-66115600 | Elect.Hydr.Cyl. For Soft Top |
€804,10 |
|
|
| 8 | M-66115700 | Elect.Hydr.Cyl. For Soft Top |
€519,35 |
|
|
| 13 | M-980002004 | Lh Cyl.Oil Pipe Kit For S.To |
€131,75 |
|
|
| 14 | M-980002005 | Rh Cyl.Oil Pipe Kit For Cove |
€196,35 |
|
|
| 18 | M-980001094 | Pipe Fastening Clamp Kit -10 |
€30,27 |
|
|
| 19 | M-66956400 | Soft Top Pump Trim Panel |
€40,85 |
|
|
| 20 | M-15896472 | Nut |
€1,78 |
|
|
| 21 | M-13577778 | Washer |
€1,88 |
|
|
| 23 | M-980002017 | Safety Ring Kit |
€53,45 |
|
