Diagram image not available

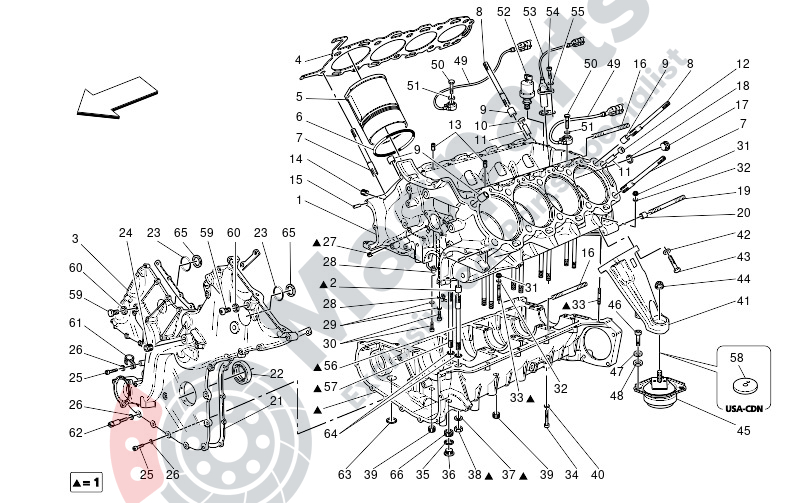

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-216261 | Crankcase / Lower Crank.Asse |
$2,516.03 |
|
|
| 2 | M-176421 | Centering Dowel |
$8.49 |
|
|
| 4 | M-184966 | Rh Head Gasketcrankcase |
$74.80 |
|
|
| 5 | M-190770 | Cylinder Liner |
$258.26 |
|
|
| 6 | M-186251 | O-Ring D.95X3.2 |
$5.53 |
|
|
| 7 | M-194754 | Stud M 14(X2) Stem M 11X1 |
$13.64 |
|
|
| 8 | M-194755 | Stud M 14(X2) Stem M 11X1 |
$15.32 |
|
|
| 9 | M-185360 | Centring Dowel D.16X15 |
$6.16 |
|
|
| 10 | M-194773 | Choke Dowel D.14X6 |
$7.56 |
|
|
| 11 | M-156862 | Check Valve |
$6.54 |
|
|
| 12 | M-184045 | Choke Dowel D.14X6.5 |
$7.56 |
|
|
| 13 | M-177727 | Centering Dowel For Intake |
$5.49 |
|
|
| 14 | M-164400 | Tapered Threaded Plug D.16X1 |
$6.37 |
|
|
| 15 | M-175611 | Centering Dowel |
$3.55 |
|
|
| 16 | M-13546834 | Stud M10X1.25X20 Stem |
$2.10 |
|
|
| 18 | M-10263460 | Gasket 22- 28X 1.5 |
$1.66 |
|
|
| 19 | M-13547034 | Stud M10X1.25X20 Stem |
$13.73 |
|
|
| 20 | M-100052 | Centering Dowel |
$5.49 |
|
|
| 22 | M-188717 | Gasket For Rot.Shaft D.48-65 |
$34.47 |
|
|
| 23 | M-183010 | O-Ring D. 32.93 |
$3.55 |
|
|
| 24 | M-14324940 | Tapered Threaded Plug 14X1 |
$1.67 |
|
|
| 25 | M-14303924 | Socket Head Screw M 6X 70 |
$5.69 |
|
|
| 26 | M-11197774 | Washer |
$2.14 |
|
|
| 27 | M-13525770 | Threaded Fitting M8X12 |
$2.10 |
|
|
| 28 | M-175657 | Pistons Cooling Nozzle |
$14.81 |
|
|
| 29 | M-11181474 | Tapered Rubber Washerd |
$1.46 |
|
|
| 30 | M-14302921 | Socket Head Screw M 4X 10 |
$1.46 |
|
|
| 31 | M-132877 | Small-Sized Hex. Selflock. N |
$4.65 |
|
|
| 32 | M-12604274 | Washer |
$1.46 |
|
|
| 33 | M-13541624 | Stud M6X12 Stem 35 |
$12.41 |
|
|
| 34 | M-14305324 | Screw |
$1.65 |
|
|
| 35 | M-10261860 | Gasket 22- 30X 1.5 |
$1.08 |
|
|
| 36 | M-10275011 | Cylinder Threaded Plug M 22X |
$5.18 |
|
|
| 37 | M-178348 | Machined Washer D.10.2-20X2. |
$3.51 |
|
|
| 38 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.72 |
|
|
| 39 | M-14325140 | Tapered Threaded Plug 18X51. |
$2.97 |
|
|
| 40 | M-11197774 | Washer |
$2.14 |
|
|
| 41 | M-186029 | Rh Bracket Fast.Engine To Fr |
$84.55 |
|
|
| 42 | M-11190574 | Tapered Rubber Washer 10.5-2 |
$1.65 |
|
|
| 43 | M-11306934 | Bol For Motor Mount Assem |
$3.76 |
|
|
| 44 | M-177018 | Nut For Rear Differential |
$2.48 |
|
|
| 46 | M-14307334 | Socket Head Screw M10X1.25X5 |
$7.45 |
|
|
| 47 | M-11198374 | Washer |
$2.59 |
|
|
| 48 | M-14496624 | Washer |
$1.65 |
|
|
| 50 | M-16043834 | Hex Head Screw M 8X30 |
$1.15 |
|
|
| 51 | M-11198074 | Tapered Rubber Washer D8.5-1 |
$1.30 |
|
|
| 52 | M-135940 | Cpl Pressure Electronic Tran |
$158.73 |
|
|
| 53 | M-182194 | Dg6 Rpm Sensor |
$93.72 |
|
|
| 54 | M-14305724 | Screw |
$1.65 |
|
|
| 55 | M-11197774 | Washer |
$2.14 |
|
|
| 58 | M-191791 | Engine Bushings Upper Guard |
$3.79 |
|
|
| 60 | M-10284460 | Gasket |
$1.07 |
|
|
| 61 | M-10441590 | Bracket With Sheath |
$1.08 |
|
|
| 62 | M-190876 | Front Cover Fastening Stud |
$16.66 |
|
|
| 63 | M-10158801 | Expansion Cap For Hole D. |
$1.46 |
|
|
| 64 | M-134704 | O-Ring D.7.66X1 |
$1.07 |
|
|
| 65 | M-191620 | Water Output Narrowing From |
$16.66 |
|
