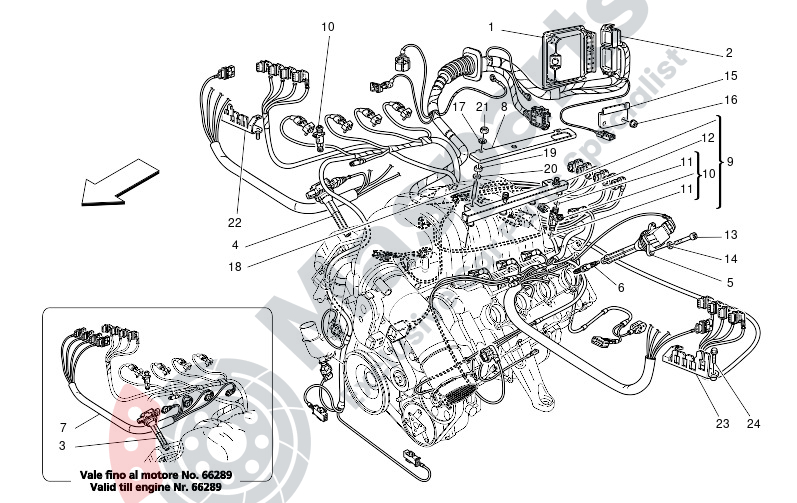

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-180251 | Ignition Ecu |
$2,055.91 |
|
|
| 2 | M-195034 | Engine Injection Wiring M13 |
$979.65 |
|
|
| 3 | M-186915 | Single Ignition Coil |
$94.17 |
|
|
| 4 | M-188504 | Single Ignition Coil |
$151.68 |
|
|
| 5 | M-186914 | Single Ignition Coil |
$151.68 |
|
|
| 6 | M-192637 | Ngk-Pmr Spark Plug |
$22.21 |
|
|
| 7 | M-189549 | Bridging Cable For Inject. C |
$200.95 |
|
|
| 8 | M-189123 | Rh Fuel Pipe Cover |
$29.24 |
|
|
| 10 | M-171723 | Electro-Injector |
$198.00 |
|
|
| 11 | M-133902 | O-Ring D.7.8X3.6 |
$9.89 |
|
|
| 12 | M-144730 | Injector Retaining Clip |
$5.58 |
|
|
| 13 | M-14305324 | Screw |
$1.67 |
|
|
| 14 | M-11197774 | Washer |
$2.18 |
|
|
| 16 | M-14084211 | Nut |
$1.55 |
|
|
| 17 | M-11193874 | Washer |
$1.33 |
|
|
| 19 | M-16102314 | Nut |
$1.48 |
|
|
| 20 | M-12604474 | Washer |
$1.33 |
|
|
| 21 | M-14042321 | S-Locking Hex.Cap Nut M8 |
$1.82 |
|
|
| 22 | M-190009 | Support Brake For Coil Wirin |
$16.20 |
|
|
| 23 | M-190010 | Support Brake For Coil Wirin |
$16.20 |
|
|
| 24 | M-18750121 | Screw |
$3.82 |
|
