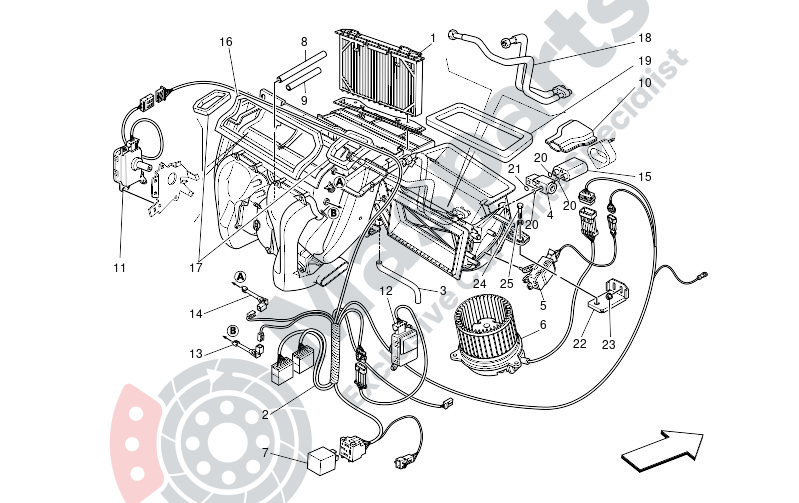

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-382400304 | Pollen Filter 5.732.215.0 |
$65.16 |
|
|
| 3 | M-980000979 | Condensation Outlet Hose 5.5 |
$3.21 |
|
|
| 7 | M-46451295 | Rele On A.C. Wiringm138 |
$45.07 |
|
|
| 8 | M-385510479 | Water Inlet Ac Piperhd 55971 |
$19.96 |
|
|
| 9 | M-385510481 | Rhd Water Outlet Pipe 559710 |
$21.33 |
|
|
| 10 | M-980000984 | Protec. Shell 5.564.210.0.0 |
$8.30 |
|
|
| 11 | M-980000974 | Actuator 5.120.401.0.1 |
$116.90 |
|
|
| 12 | M-980000999 | Actuator 5.120.414.0.0 - Mix |
$71.73 |
|
|
| 15 | M-980001126 | Complete Valve For A/C Ev |
$43.52 |
|
|
| 16 | M-385500501 | Foam Gaskets For A/C Evap |
$2.17 |
|
|
| 17 | M-385500502 | Foam Gaskets For A/C Evap |
$4.00 |
|
|
| 18 | M-980001201 | Cpl Pipe Freon |
$115.93 |
|
|
| 19 | M-385500503 | Upper Gasket 5B1220600 |
$4.54 |
|
|
| 20 | M-375500458 | O-Ring |
$7.13 |
|
|
| 21 | M-375500457 | O-Ring |
$4.54 |
|
|
| 23 | M-14059214 | Nut |
$1.25 |
|
|
| 24 | M-16043124 | Screw |
$1.69 |
|
|
| 25 | M-12646724 | Washer |
$1.69 |
|
