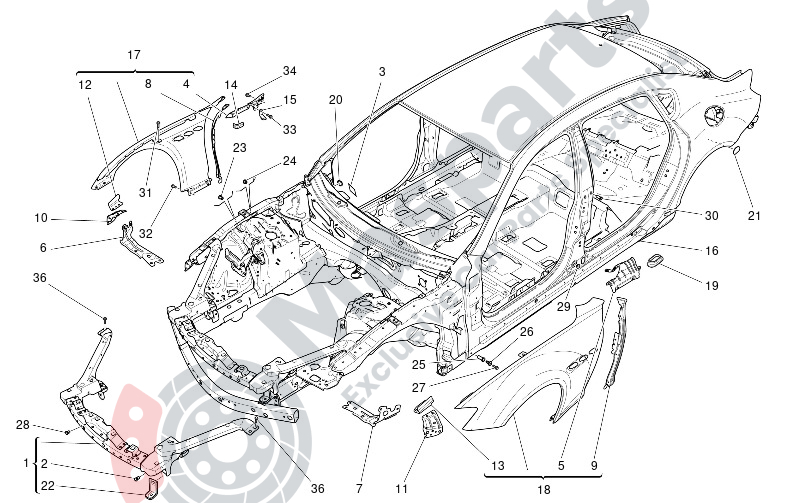

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673006046 | Cpl Front Upper Headlight Ho |
$658.69 |
|
|
| 2 | M-675000398 | Rivet |
$3.49 |
|
|
| 3 | M-675000747 | Protection |
$3.21 |
|
|
| 4 | M-673000421 | Rh Front Mudguard Rear Upper |
$42.74 |
|
|
| 5 | M-673000423 | Lh Front Mudguard Rear Upper |
$51.27 |
|
|
| 6 | M-673002838 | Cpl Rh Mudguard Bracket |
$51.89 |
|
|
| 7 | M-673002837 | Cpl Lh Mudguard Bracket |
$51.89 |
|
|
| 8 | M-673000422 | Rh Front Mudguard Rear Edge |
$41.74 |
|
|
| 9 | M-673000424 | Lh Front Mudguard Rear Edge |
$55.15 |
|
|
| 10 | M-673000409 | Rh Front Mudguard Front Lowe |
$96.15 |
|
|
| 11 | M-673000410 | Lh Front Mudguard Front Lowe |
$96.15 |
|
|
| 12 | M-673000389 | Rh Front Mudgard Fast.Bracke |
$28.91 |
|
|
| 13 | M-673000390 | Lh Front Mudgard Fast.Bracke |
$28.91 |
|
|
| 14 | M-673000794 | Mudguard Lateral Bracket |
$23.67 |
|
|
| 15 | M-673000796 | Rh Mudguard Upper Fast.Brack |
$21.06 |
|
|
| 17 | M-673009034 | Rh Front Modguard |
$1,107.08 |
|
|
| 18 | M-673009035 | Lh Front Modguard |
$1,107.08 |
|
|
| 19 | M-670036842 | Cap |
$1.15 |
|
|
| 20 | M-675000316 | Plug |
$3.22 |
|
|
| 21 | M-675000424 | Plug |
$8.84 |
|
|
| 22 | M-670003856 | Headlight Holder Crossmember |
$22.36 |
|
|
| 23 | M-670003669 | Rivet |
$2.23 |
|
|
| 24 | M-670005411 | Rivet |
$1.74 |
|
|
| 25 | M-670005223 | Rivet |
$22.97 |
|
|
| 26 | M-670006065 | Adjustable Insert |
$5.79 |
|
|
| 27 | M-670005287 | M6 Bolt |
$2.51 |
|
|
| 28 | M-670002185 | Rivet |
$3.01 |
|
|
| 29 | M-675000244 | Plug |
$1.00 |
|
|
| 30 | M-675000715 | Nutserts |
$1.74 |
|
|
| 31 | M-675000588 | Screw |
$1.03 |
|
|
| 32 | M-670005287 | M6 Bolt |
$2.51 |
|
|
| 33 | M-675000751 | Screw |
$1.20 |
|
|
| 34 | M-675000605 | Screw |
$1.00 |
|
|
| 36 | M-670005314 | Screw M8X25 |
$2.48 |
|
