Diagram image not available

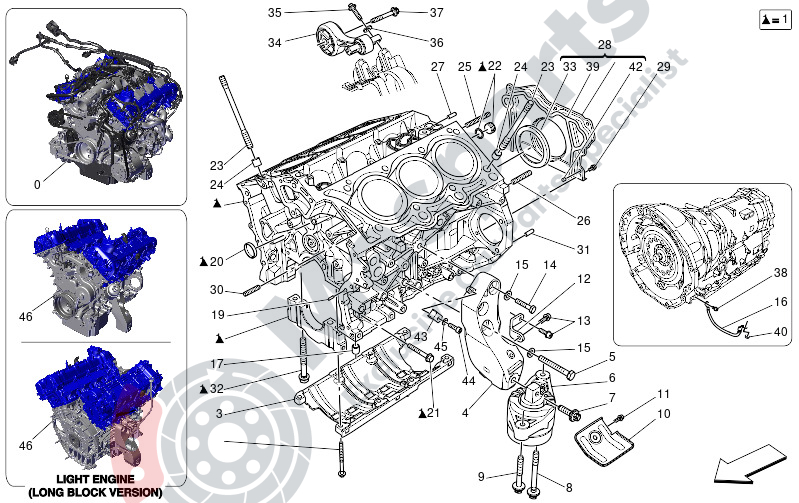

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 0 | M-985000332 | Light Engine F160 As 350 Rwd |
$14,165.81 |
|
|
| 1 | M-767001 | V6 Crackshaft Cpl Supports ( |
$5,415.48 |
|
|
| 3 | M-275361 | Shield |
$74.08 |
|
|
| 4 | M-336971 | Rh Engine Mounting Bracket |
$294.87 |
|
|
| 5 | M-15971334 | Screw |
$3.76 |
|
|
| 6 | M-670175584 | Rh Engine Side Plug |
$207.42 |
|
|
| 7 | M-670003759 | Screw |
$6.42 |
|
|
| 8 | M-670103084 | Screw And Washer |
$2.95 |
|
|
| 9 | M-670103084 | Screw And Washer |
$2.95 |
|
|
| 12 | M-289475 | Rh Bracket |
$13.97 |
|
|
| 13 | M-231628 | Screw |
$2.35 |
|
|
| 14 | M-11288034 | Screw |
$4.82 |
|
|
| 15 | M-11190574 | Tapered Rubber Washer 10.5-2 |
$1.65 |
|
|
| 16 | M-670007404 | Ground Cable For Engine-Fram |
$175.84 |
|
|
| 17 | M-300476 | Centering Dowel D.15X17 |
$4.48 |
|
|
| 19 | M-279025 | Centering Dowel |
$79.80 |
|
|
| 22 | M-313719 | Threaded Plug With Cu Washer |
$125.06 |
|
|
| 23 | M-306027 | Stud |
$24.30 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
$6.16 |
|
|
| 25 | M-303590 | Stud M10X15X26 Stem54 M10X12 |
$6.41 |
|
|
| 26 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
$12.11 |
|
|
| 27 | M-10337710 | Pin |
$9.11 |
|
|
| 28 | M-335495 | Rear Plate (Assy) Post-Chang |
$328.42 |
|
|
| 29 | M-231617 | Socket Head Screw With Washe |
$2.35 |
|
|
| 31 | M-10337710 | Pin |
$9.11 |
|
|
| 33 | M-334627 | Crankshaft Rear Gasket |
$72.90 |
|
|
| 34 | M-670003630 | High Connecting Rod |
$82.88 |
|
|
| 35 | M-670035412 | Screw |
$4.82 |
|
|
| 36 | M-675000247 | Washer |
$1.59 |
|
|
| 37 | M-675000146 | Screw |
$5.59 |
|
|
| 38 | M-675000383 | Screw |
$1.17 |
|
|
| 39 | M-326558 | Cranckshaft Rear Plate Seal |
$9.76 |
|
|
| 40 | M-675000505 | Nut |
$2.90 |
|
|
| 42 | M-102725 | Centring Dowel D.8X8 |
$1.66 |
|
|
| 43 | M-10418501 | Bracket |
$1.66 |
|
|
| 44 | M-231616 | Screw |
$2.00 |
|
|
| 45 | M-11190574 | Tapered Rubber Washer 10.5-2 |
$1.65 |
|
