Diagram image not available

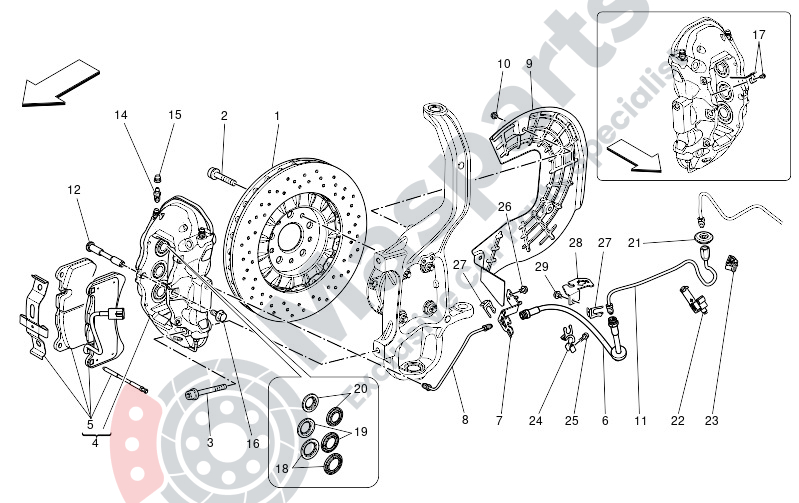

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670030935 |
Front Brake Disc (Middle System)
|
$266.63 |
|
|
| 2 | M-675000081 |
Screw
|
$4.94 |
|
|
| 3 | M-670005714 | Screw |
$6.59 |
|
|
| 5 | M-673012041 |
Front Brake Pads Kit M156 V6
|
$438.64 |
|
|
| 6 | M-670006887 | Brakes Hose B150/Txa120-E/F |
$24.62 |
|
|
| 7 | M-670001817 | Right Front Flexible Brake P |
$4.45 |
|
|
| 8 | M-670001794 | R.H. Front Caliper Rigid Pip |
$14.82 |
|
|
| 9 | M-675000067 | R.H. Front Brake Disc Shield |
$6.89 |
|
|
| 10 | M-675000126 | Screw |
$1.61 |
|
|
| 11 | M-670039841 | Pipe |
$24.81 |
|
|
| 12 | M-198015 | Tie Rod |
$50.77 |
|
|
| 14 | M-152954 | Bleeding Screw |
$39.24 |
|
|
| 15 | M-215666 | Cap |
$26.62 |
|
|
| 16 | M-198014 | Screw |
$21.93 |
|
|
| 17 | M-673000054 | Bracket And Screw |
$47.98 |
|
|
| 18 | M-182121 | Cap |
$74.47 |
|
|
| 19 | M-215664 | Cap |
$51.08 |
|
|
| 20 | M-215663 | Cap |
$51.08 |
|
|
| 21 | M-675000281 | Gasket On Pillar |
$3.34 |
|
|
| 22 | M-670039674 | Clip |
$2.39 |
|
|
| 23 | M-675000272 | Retaining Clip |
$5.00 |
|
|
| 24 | M-670007373 | Bracket |
$8.60 |
|
|
| 25 | M-675000126 | Screw |
$1.61 |
|
|
| 26 | M-675000126 | Screw |
$1.61 |
|
|
| 27 | M-675000276 | Plate |
$0.94 |
|
|
| 28 | M-670037128 | Rh Brake Pipe Bracket |
$3.60 |
|
|
| 29 | M-675000621 | Screw (M6X18) |
$0.86 |
|
