Diagram image not available

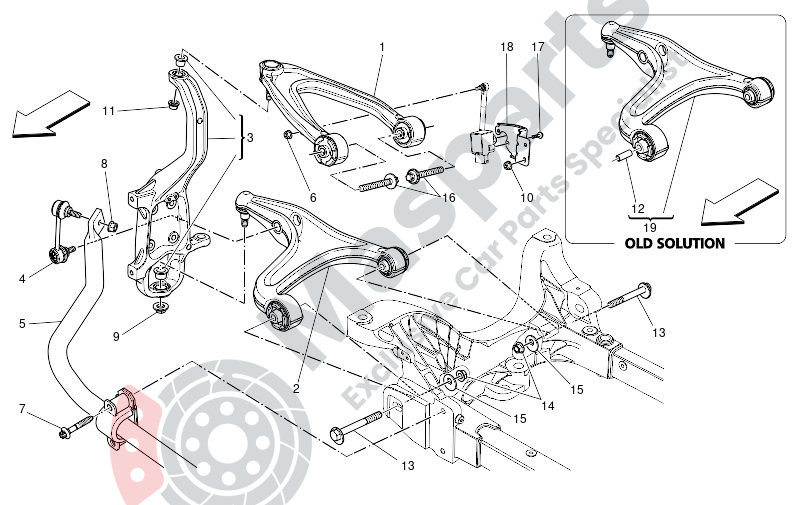

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004186 | Cpl Front Rh Suspension Uppe |
€274,55 |
|
|
| 2 | M-670039029 | Complete Rh Front Lower Leve |
€446,25 |
|
|
| 3 | M-670039103 | Cpl Rh Front Suspension Pill |
€481,95 |
|
|
| 4 | M-670005004 | Small Link |
€48,62 |
|
|
| 5 | M-670006599 | Anti-Roll Bar Front Susp. |
€248,20 |
|
|
| 6 | M-675000095 | Nut |
€0,66 |
|
|
| 7 | M-675000393 | Screw |
€3,45 |
|
|
| 8 | M-675000124 | Nut |
€0,83 |
|
|
| 9 | M-675000082 | Nut |
€3,71 |
|
|
| 10 | M-675000095 | Nut |
€0,66 |
|
|
| 11 | M-670002916 | Nut |
€2,09 |
|
|
| 12 | M-670101760 | Spacer Bushing Pt1 |
€15,82 |
|
|
| 13 | M-670002853 | Screw With Eccentric M14X118 |
€15,46 |
|
|
| 14 | M-670002854 | Special Nut M14X2 |
€1,78 |
|
|
| 15 | M-670002806 | Special Washer With Eccentri |
€5,24 |
|
|
| 16 | M-670007895 | Special Screw |
€6,53 |
|
|
| 17 | M-675000197 | Screw |
€2,00 |
|
|
| 18 | M-670003043 | Bracket |
€7,54 |
|
