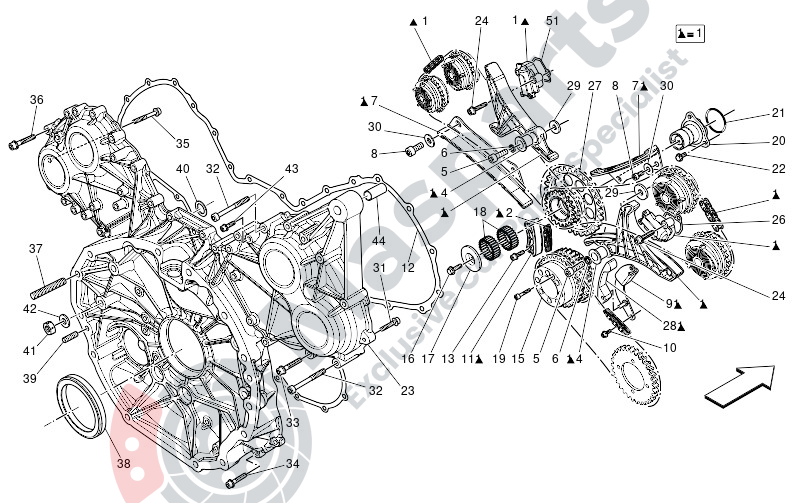

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-790545 | Timing Control Assembly |
$1,376.00 |
|
|
| 2 | M-271880 | Transmission Chain |
$61.51 |
|
|
| 4 | M-175303 | Movable Runner Fast. Bushing |
$20.30 |
|
|
| 5 | M-14306424 | Screw |
$2.03 |
|
|
| 6 | M-284900 | Washer |
$2.15 |
|
|
| 7 | M-272108 | Fixed Runner |
$46.97 |
|
|
| 8 | M-14302821 | Screw |
$2.03 |
|
|
| 9 | M-271856 | Runner Mount |
$22.45 |
|
|
| 10 | M-282392 | Screw |
$1.46 |
|
|
| 11 | M-306094 | Chain Guide |
$33.24 |
|
|
| 12 | M-294727 | Gasket Base |
$218.07 |
|
|
| 13 | M-282396 | Screw |
$2.86 |
|
|
| 15 | M-286222 | Crankshaft Terminal Gear |
$380.05 |
|
|
| 16 | M-284898 | Screw |
$14.00 |
|
|
| 17 | M-304699 | Transmission Toothed Wheel S |
$29.51 |
|
|
| 18 | M-267808 | Roller Cage |
$20.08 |
|
|
| 19 | M-245914 | Screw |
$2.39 |
|
|
| 20 | M-322199 | Support |
$150.87 |
|
|
| 21 | M-154191 | O-Ring D. 44.17- 8X 100 |
$3.61 |
|
|
| 22 | M-284898 | Screw |
$14.00 |
|
|
| 23 | M-294786 | Distribution Rear Cover |
$859.40 |
|
|
| 24 | M-282398 | Screw |
$2.86 |
|
|
| 26 | M-322518 | Gasket |
$11.05 |
|
|
| 27 | M-287000 | Transmission Toothed Wheel |
$381.96 |
|
|
| 28 | M-257626 | Chain Tensioner |
$62.58 |
|
|
| 29 | M-288341 | Washer |
$14.32 |
|
|
| 30 | M-163759 | Washer |
$12.37 |
|
|
| 31 | M-231621 | Screw |
$1.09 |
|
|
| 32 | M-255494 | Screw |
$2.94 |
|
|
| 33 | M-231623 | Socket Head Screw With Washe |
$1.09 |
|
|
| 34 | M-231620 | Socket Head Screw With Washe |
$1.60 |
|
|
| 35 | M-231624 | Socket Head Screw With Washe |
$2.75 |
|
|
| 36 | M-231622 | Socket Head Screw With Washe |
$1.10 |
|
|
| 37 | M-13546734 | Stud M10X1.25X20 Stem |
$4.34 |
|
|
| 38 | M-240214 | Crankshaft Stroke Gasket |
$55.20 |
|
|
| 39 | M-10337710 | Pin |
$9.26 |
|
|
| 40 | M-281725 | Gasket |
$2.30 |
|
|
| 41 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.75 |
|
|
| 42 | M-178348 | Machined Washer D.10.2-20X2. |
$3.57 |
|
|
| 43 | M-231616 | Screw |
$2.03 |
|
|
| 44 | M-298694 | Threaded Insert |
$6.47 |
|
|
| 51 | M-306440 | Tensioner Gasket |
$5.93 |
|
