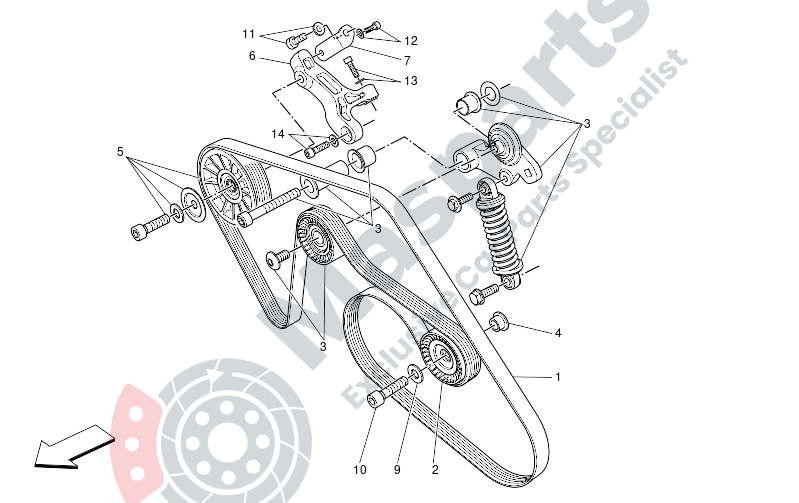

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-270901 | Compressor Control Belt |
$69.51 |
|
|
| 2 | M-238590 | Belt Tightening Pulley |
$38.91 |
|
|
| 3 | M-281995 | Tightener |
$536.57 |
|
|
| 4 | M-269781 | Bushing For Tightener |
$26.57 |
|
|
| 5 | M-257942 | Belt Tightening Pulley With |
$193.99 |
|
|
| 6 | M-330787 | Pulley Fastening Bracket |
$108.68 |
|
|
| 7 | M-334227 | Pulley Fastening Bracket Rei |
$11.87 |
|
|
| 9 | M-12642524 | Washer |
$1.67 |
|
|
| 10 | M-305554 | Screw |
$6.40 |
|
|
| 11 | M-231628 | Screw |
$2.39 |
|
|
| 12 | M-231617 | Socket Head Screw With Washe |
$2.39 |
|
|
| 13 | M-231619 | Socket Head Screw With Washe |
$2.39 |
|
|
| 14 | M-231628 | Screw |
$2.39 |
|
