Diagram image not available

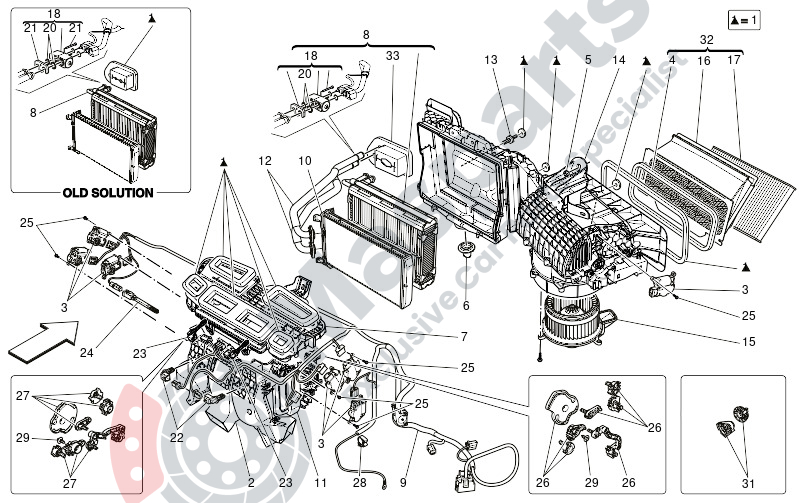

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009607 | Sealings Kit M156/7 Lhd |
$46.88 |
|
|
| 2 | M-673009330 | Air Duct |
$67.35 |
|
|
| 3 | M-670104418 | Actuator |
$64.29 |
|
|
| 4 | M-670007353 | Gasket |
$30.46 |
|
|
| 5 | M-675000093 | Nut |
$1.45 |
|
|
| 6 | M-675000425 | Condensation Outlet Hose |
$17.45 |
|
|
| 7 | M-673009329 | Air Duct |
$82.41 |
|
|
| 8 | M-673013159 | Lhd Evaporator |
$99.19 |
|
|
| 9 | M-673009320 | Wiring Harness |
$184.16 |
|
|
| 10 | M-673009324 | Heater |
$143.49 |
|
|
| 11 | M-673009317 | Central Body Hvac Gasoline |
$270.62 |
|
|
| 12 | M-673009325 | Heater Hose Kit |
$81.56 |
|
|
| 13 | M-673009338 | Pin |
$17.07 |
|
|
| 14 | M-673009318 | Air Inlet Module Lhd |
$353.36 |
|
|
| 15 | M-673009319 | Electrofan Gsx |
$446.27 |
|
|
| 16 | M-670005020 | Air Conditioner Box |
$31.59 |
|
|
| 17 | M-670005021 | Pollen Filter |
$50.70 |
|
|
| 18 | M-673009322 | Txv Kit |
$211.60 |
|
|
| 20 | M-673009339 | Gasket Kit |
$46.06 |
|
|
| 21 | M-673009336 | Txv Fixing Kit |
$14.32 |
|
|
| 22 | M-673009333 | Air Temp. Floor Sensor |
$35.24 |
|
|
| 23 | M-673009332 | Air Temp. Vent Sensor |
$30.01 |
|
|
| 24 | M-673009331 | Evapourator Sensor |
$46.58 |
|
|
| 25 | M-673009334 | Screw |
$7.31 |
|
|
| 26 | M-673009326 | Kit Right Side Mix/Mode Kine |
$24.40 |
|
|
| 27 | M-673009327 | Kit Left Side Mix/Mode Kinem |
$24.40 |
|
|
| 28 | M-673009337 | Retaining Clip |
$15.30 |
|
|
| 29 | M-673009335 | Screw |
$11.82 |
|
|
| 31 | M-673009328 | Kit Air Inlet/Rec Kinematics |
$19.35 |
|
|
| 32 | M-670004016 | Air Conditioner Box With Pol |
$84.08 |
|
|
| 33 | M-673014092 | Sealings Set |
$38.61 |
|
