Diagram image not available

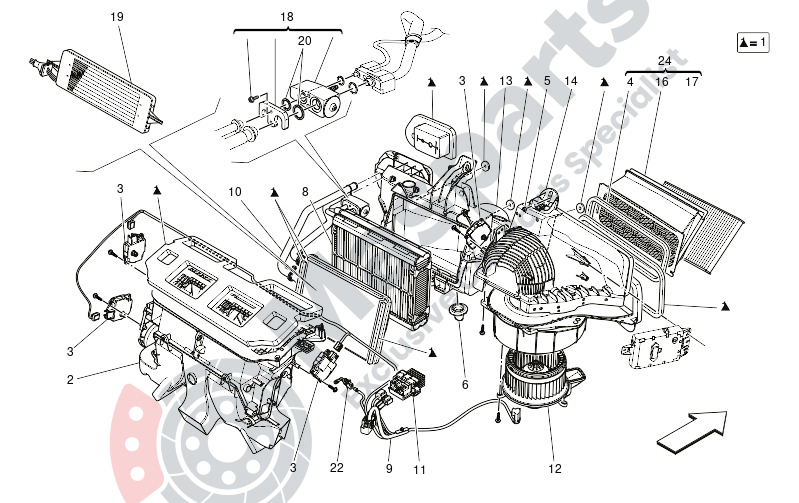

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673000099 | Lhd Kit Gasket |
$261.51 |
|
|
| 2 | M-673003282 | Lhd Module Air Distribution |
$774.97 |
|
|
| 3 | M-673005493 | Hvac Actuator |
$161.08 |
|
|
| 4 | M-670007353 | Gasket |
$31.06 |
|
|
| 5 | M-675000093 | Nut |
$1.48 |
|
|
| 6 | M-675000425 | Condensation Outlet Hose |
$17.80 |
|
|
| 8 | M-673009432 | Evaporator Lhd Ds <My19. |
$1,047.00 |
|
|
| 9 | M-673000090 | Lhd Cable |
$158.00 |
|
|
| 10 | M-673000093 | Lhd Kit Heating |
$622.70 |
|
|
| 11 | M-673009866 | Power Modulo |
$314.67 |
|
|
| 12 | M-673000088 | Lhd Fan |
$456.12 |
|
|
| 13 | M-673000095 | Lhd Evaporator Structure |
$172.22 |
|
|
| 14 | M-673000101 | Lhd Module Inlet Air |
$366.76 |
|
|
| 16 | M-670005020 | Air Conditioner Box |
$32.22 |
|
|
| 17 | M-670005021 | Pollen Filter |
$51.70 |
|
|
| 18 | M-673003704 | Txv Kit |
$234.94 |
|
|
| 19 | M-673003284 | Ptc Heater Lhd |
$1,016.59 |
|
|
| 20 | M-673005761 | Txv Gaskets Kit |
$118.00 |
|
|
| 22 | M-673000104 | Temperature Sensor |
$30.96 |
|
|
| 24 | M-670004016 | Air Conditioner Box With Pol |
$85.74 |
|
