Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

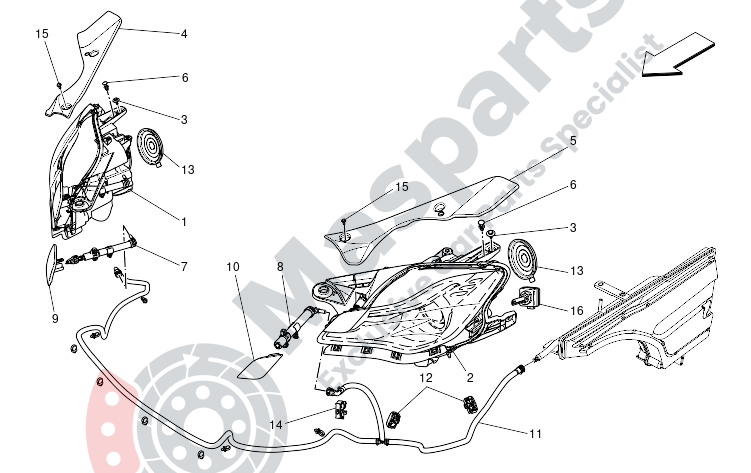

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670104195 | Quattroporte Rh Front Headlight (2014 Onwards) |
$2,984.71 |
|
|
| 2 | M-670104199 | Quattroporte Lh Headlight (2014 Onwards) |
$1,939.87 |
|
|
| 3 | M-675000011 | Screw |
$2.56 |
|
|
| 6 | M-675000053 | Rivet |
$1.88 |
|
|
| 7 | M-673000039 | Rh Telescopic Headlight Wash |
$96.29 |
|
|
| 8 | M-673000038 | Lh Telescopic Headlight Wash |
$94.48 |
|
|
| 9 | M-673008002 | Rh Headlight Washer Plate |
$35.57 |
|
|
| 10 | M-673008001 | Lh Headlight Washer Plate |
$35.95 |
|
|
| 11 | M-670038522 | Washing System Pipe |
$70.91 |
|
|
| 12 | M-670006382 | Clip |
$1.67 |
|
|
| 13 | M-673000040 | Cap |
$7.14 |
|
|
| 14 | M-670005014 | Clip |
$2.71 |
|
|
| 15 | M-675000488 | Screw |
$1.07 |
|
|
| 16 | M-673005741 | Xenon Lamp |
$149.73 |
|
