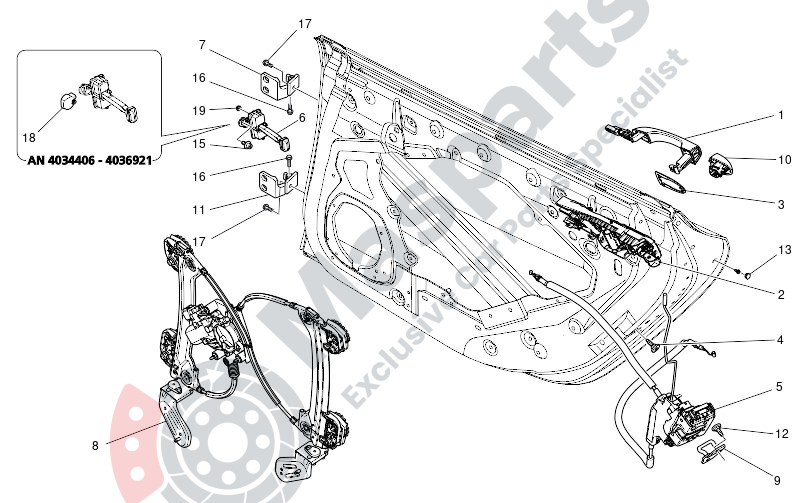

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670005442 | External Door Handle Gasket |
$1.68 |
|
|
| 4 | M-670154292 | Screw |
$3.71 |
|
|
| 5 | M-670162432 | Rear Door Lock |
$154.78 |
|
|
| 6 | M-670215029 | Rear Door Stop Rod |
$24.13 |
|
|
| 7 | M-675000162 | Rh Door Upper Hinge |
$43.47 |
|
|
| 8 | M-670103664 | Rear Rh Power Window Mechani |
$456.24 |
|
|
| 9 | M-675000573 | Doors Lock Striker |
$17.54 |
|
|
| 11 | M-675000161 | Rh Door Lower Hinge |
$25.94 |
|
|
| 12 | M-670009758 | Screw |
$2.06 |
|
|
| 15 | M-670006984 | Screw |
$2.30 |
|
|
| 16 | M-675000005 | Special Screw |
$2.24 |
|
|
| 17 | M-675000485 | Special Screw |
$1.54 |
|
|
| 19 | M-670006983 | Flanged Nut |
$1.69 |
|
