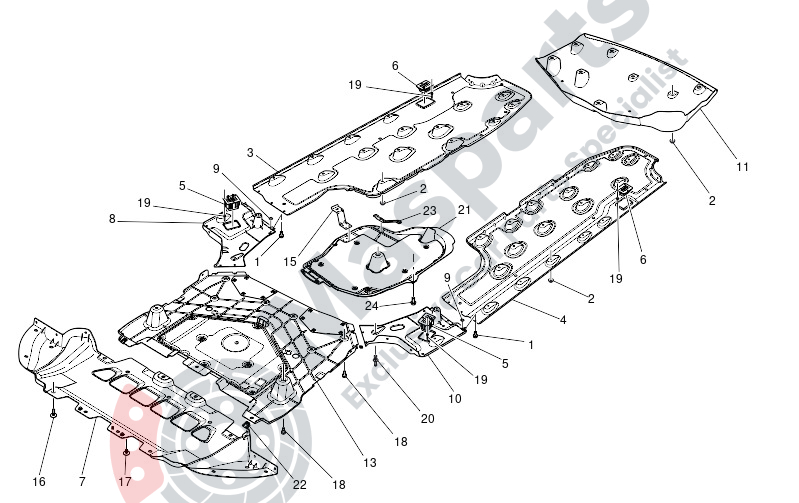

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
$2.22 |
|
|
| 2 | M-675000324 | Special Nut |
$1.24 |
|
|
| 3 | M-670030795 | Cpl Front Central Rh Aerodyn |
$655.97 |
|
|
| 4 | M-670008860 | Cpl Front Central Lh Aerodyn |
$655.97 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
$14.85 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
$11.85 |
|
|
| 7 | M-670009445 | Cpl Front Aerodynamic Shield |
$107.29 |
|
|
| 8 | M-670153481 | Cpl Front Rh Aerodynamic Shi |
$47.25 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
$2.04 |
|
|
| 10 | M-670153483 | Cpl Front Lh Aerodynamic Shi |
$46.21 |
|
|
| 11 | M-670030777 | Rear Aerodynamic Shield |
$66.74 |
|
|
| 13 | M-670039641 | Front Aerodynamic Engine Gua |
$226.81 |
|
|
| 15 | M-670009630 | Under Engine Rh Shield Brack |
$9.13 |
|
|
| 16 | M-670034505 | Special Screw |
$2.48 |
|
|
| 17 | M-670007383 | Fastening Pin |
$7.92 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
$2.51 |
|
|
| 19 | M-675000323 | Rivet |
$1.83 |
|
|
| 20 | M-675000150 | Fixing Button. |
$0.96 |
|
|
| 21 | M-670009238 | Cpl Under Engine Shield (Die |
$163.89 |
|
|
| 22 | M-675000020 | Lower Shield Fastening Clip |
$6.97 |
|
|
| 23 | M-670009631 | Under Engine Lh Shield Brack |
$8.60 |
|
|
| 24 | M-670005384 | Screw |
$2.41 |
|
