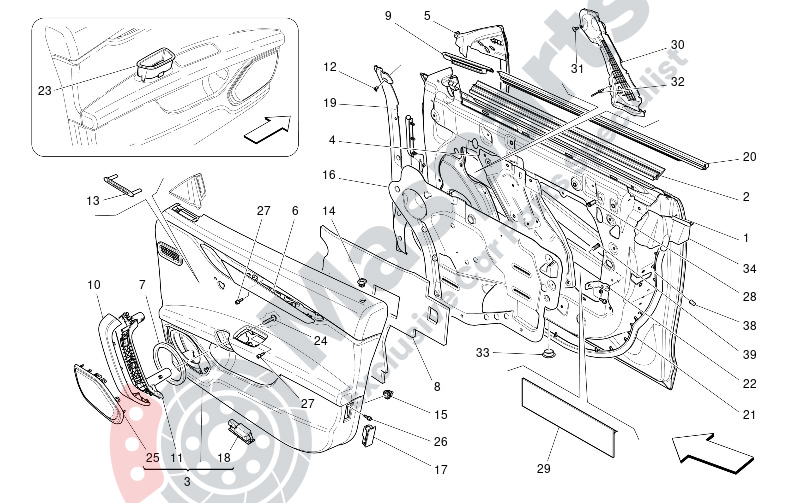

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007995 | Cpl Rh Front Door |
$1,687.26 |
|
|
| 2 | M-670030047 | R.H. Front Glass Scraper Gas |
$81.55 |
|
|
| 4 | M-670035256 | Rh Front Door Central Framew |
$39.63 |
|
|
| 5 | M-670101716 | Rh Door Mirror Gasket |
$157.10 |
|
|
| 7 | M-673001453 | Gasket |
$22.79 |
|
|
| 8 | M-673002007 | Rh Door Panel Soundproofing |
$70.70 |
|
|
| 12 | M-670008112 | Anti-Rustle Seal Fixing Pin |
$1.67 |
|
|
| 13 | M-673001459 | Label Bower & Wilkins |
$38.23 |
|
|
| 14 | M-673001441 | Front Door Bushing |
$65.53 |
|
|
| 15 | M-670220013 | Door Panel Fastening Pin |
$2.90 |
|
|
| 17 | M-670007082 | Door Light |
$31.23 |
|
|
| 18 | M-675000265 | Door Lamp Black |
$11.38 |
|
|
| 19 | M-670003350 | R.H.Front Top Door Sill Gask |
$40.91 |
|
|
| 22 | M-670005885 | Bracket Fast. Front Rh Door |
$5.58 |
|
|
| 24 | M-673002001 | Screw For Carrier Pull Handl |
$13.04 |
|
|
| 26 | M-670008293 | Screw |
$2.07 |
|
|
| 27 | M-670008293 | Screw |
$2.07 |
|
|
| 28 | M-670005149 | Rivet |
$2.86 |
|
|
| 29 | M-670034380 | Doors Soundproofing Adhesive |
$3.52 |
|
|
| 31 | M-670035453 | Fixing Button |
$2.86 |
|
|
| 32 | M-670007137 | Rivet |
$2.17 |
|
|
| 34 | M-670101775 | Rh Front Door Gasket Rear Si |
$76.28 |
|
|
| 38 | M-670036706 | Pin |
$3.62 |
|
|
| 39 | M-670155282 | Pin |
$2.86 |
|
