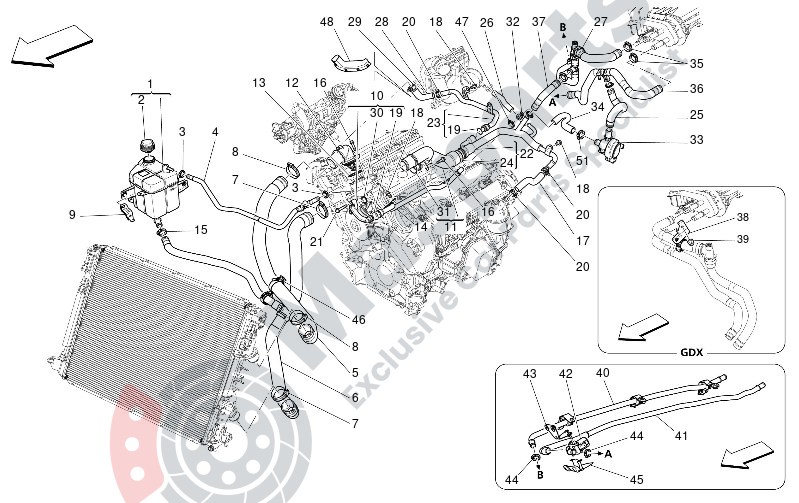

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004150 | Liquid Cooling Plate |
$67.92 |
|
|
| 2 | M-670003408 | Mount Plug |
$13.49 |
|
|
| 3 | M-675000373 | Strap Collar |
$1.87 |
|
|
| 4 | M-670004133 | Hose |
$61.81 |
|
|
| 5 | M-670031870 | Hose |
$63.41 |
|
|
| 6 | M-670004135 | Water Sleeve From Radiator |
$113.31 |
|
|
| 7 | M-675000345 | Screw Collar |
$3.67 |
|
|
| 8 | M-675000345 | Screw Collar |
$3.67 |
|
|
| 9 | M-670007665 | Tank Coolant Bracket |
$9.13 |
|
|
| 10 | M-46328194 | Delivery Pipe |
$63.03 |
|
|
| 11 | M-46328184 | Sleeve |
$330.40 |
|
|
| 12 | M-46328183 | Thermostatic Valve |
$172.34 |
|
|
| 13 | M-46328354 | Or Gasket |
$10.92 |
|
|
| 14 | M-46343717 | Coolant Inlet Pipe |
$139.02 |
|
|
| 15 | M-675000658 | Snap Collar |
$5.47 |
|
|
| 16 | M-46328687 | Flange Bolt |
$2.16 |
|
|
| 17 | M-46328306 | Water Return Sleeve From Oil |
$50.27 |
|
|
| 18 | M-46328696 | Flange Bolt |
$2.06 |
|
|
| 19 | M-46328356 | Or Gasket |
$2.16 |
|
|
| 20 | M-46328743 | Clamp |
$1.86 |
|
|
| 21 | M-46328688 | Flange Bolt |
$2.99 |
|
|
| 22 | M-46343719 | Coolant Return Pipe |
$385.63 |
|
|
| 23 | M-46343721 | Coolant Return Pipe |
$171.39 |
|
|
| 24 | M-46328355 | Or Gasket |
$2.89 |
|
|
| 25 | M-670007662 | Heater Water Delivery Sleeve |
$34.69 |
|
|
| 26 | M-46328224 | Sleeve |
$41.32 |
|
|
| 27 | M-670007661 | Heater Water Return Sleeve |
$104.74 |
|
|
| 28 | M-46328302 | Coolant Pipe |
$64.47 |
|
|
| 29 | M-46328744 | Clamp |
$2.48 |
|
|
| 30 | M-46328357 | Sleeve Gasket |
$5.15 |
|
|
| 31 | M-46328353 | Or Gasket |
$13.40 |
|
|
| 32 | M-46328742 | Clamp |
$1.45 |
|
|
| 33 | M-670002071 | Water Pump Heating Sys. |
$177.10 |
|
|
| 34 | M-670007540 | Water Pipe |
$28.78 |
|
|
| 35 | M-675000334 | Collar Clip |
$2.46 |
|
|
| 36 | M-670007660 | Water Delivery Sleeve |
$91.37 |
|
|
| 37 | M-670007663 | Water Delivery Sleeve |
$17.44 |
|
|
| 40 | M-670003067 | Water Pipe From Rear Hvac |
$164.73 |
|
|
| 41 | M-670002042 | Hose |
$165.68 |
|
|
| 42 | M-670002070 | Water Solenoid Valve Heating |
$133.30 |
|
|
| 43 | M-670002637 | Solenoid Valve Bracket |
$16.15 |
|
|
| 44 | M-675000351 | Nemo Bes Fastening Collar D. |
$2.78 |
|
|
| 45 | M-670009570 | Solenoid Valve Shield |
$11.78 |
|
|
| 46 | M-670006735 | Clip |
$3.56 |
|
|
| 47 | M-675000372 | Strap Collar |
$1.75 |
|
|
| 48 | M-46328327 | Hose Cover |
$68.95 |
|
|
| 51 | M-675000351 | Nemo Bes Fastening Collar D. |
$2.78 |
|
