Diagram image not available

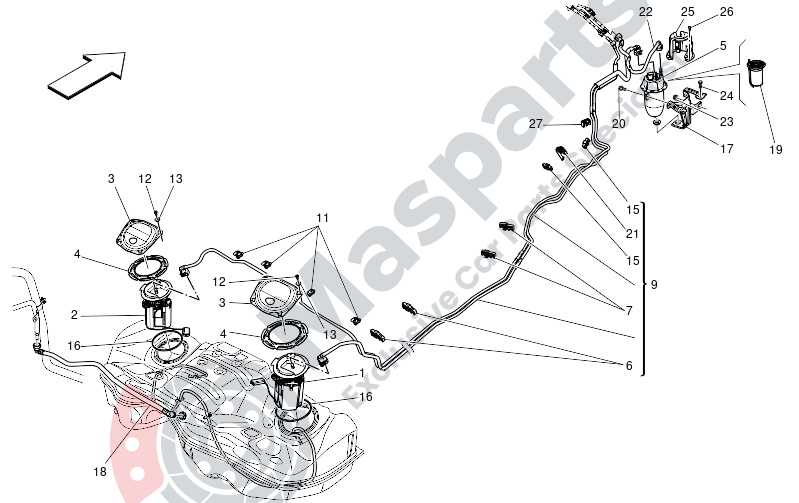

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670159337 | Rh Fuel Sensor |
$237.67 |
|
|
| 2 | M-670159338 | Lh Fuel Pump (V6 Diesel) |
$404.08 |
|
|
| 3 | M-670003258 | Fuel Tank Slot Cover |
$17.69 |
|
|
| 4 | M-670001397 | Fastening Ring Nut |
$44.73 |
|
|
| 5 | M-670033613 | Diesel Fuel Filter (Post-Cha |
$196.24 |
|
|
| 6 | M-670005063 | Clip |
$4.48 |
|
|
| 7 | M-670005064 | Clip |
$4.48 |
|
|
| 9 | M-670105819 | Underfloor Fuel Pipes |
$164.34 |
|
|
| 11 | M-670005082 | Spring |
$1.54 |
|
|
| 12 | M-675000071 | Screw |
$1.66 |
|
|
| 13 | M-675000022 | Rear Plate Fastening Block |
$8.37 |
|
|
| 15 | M-675000285 | Clip |
$2.30 |
|
|
| 16 | M-670001398 | Gasoline Pump Gasket |
$20.05 |
|
|
| 17 | M-670004180 | Bracket |
$36.42 |
|
|
| 18 | M-670036847 | Pipe |
$83.72 |
|
|
| 19 | M-673001463 | Fuel Filter |
$69.60 |
|
|
| 20 | M-675000365 | Screw |
$2.64 |
|
|
| 21 | M-675000304 | Clip |
$2.38 |
|
|
| 22 | M-670105821 | Fuel Pipe |
$40.24 |
|
|
| 23 | M-675000114 | Nut |
$1.25 |
|
|
| 24 | M-675000199 | Screw |
$2.33 |
|
|
| 25 | M-670035877 | Fuel Filter Cover |
$106.72 |
|
|
| 26 | M-670030590 | Screw |
$2.90 |
|
|
| 27 | M-670007195 | Spring |
$2.42 |
|
