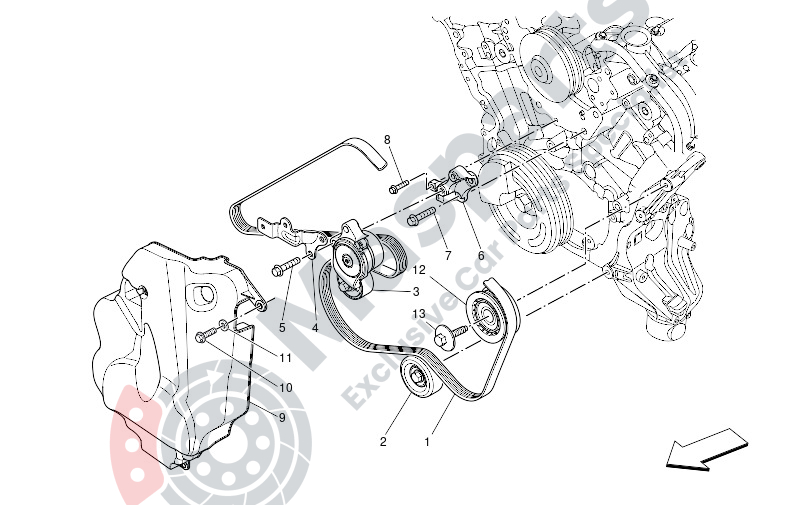

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46335431 | Belt |
$64.69 |
|
|
| 2 | M-46328756 | Belt Tensioner Pulley |
$110.32 |
|
|
| 3 | M-46330311 | Belt Tensioner |
$120.47 |
|
|
| 4 | M-46334927 | Bracket |
$7.59 |
|
|
| 5 | M-46328718 | Flange Bolt |
$3.38 |
|
|
| 6 | M-46328519 | Tensioner Bracket |
$69.74 |
|
|
| 7 | M-46328718 | Flange Bolt |
$3.38 |
|
|
| 8 | M-46328691 | Flange Bolt |
$2.96 |
|
|
| 9 | M-670009058 | Soundproof Guard |
$87.69 |
|
|
| 11 | M-675000391 | Washer |
$1.90 |
|
|
| 12 | M-675000749 | Pulley |
$84.62 |
|
|
| 13 | M-675000750 | Pulley Fastening |
$14.41 |
|
