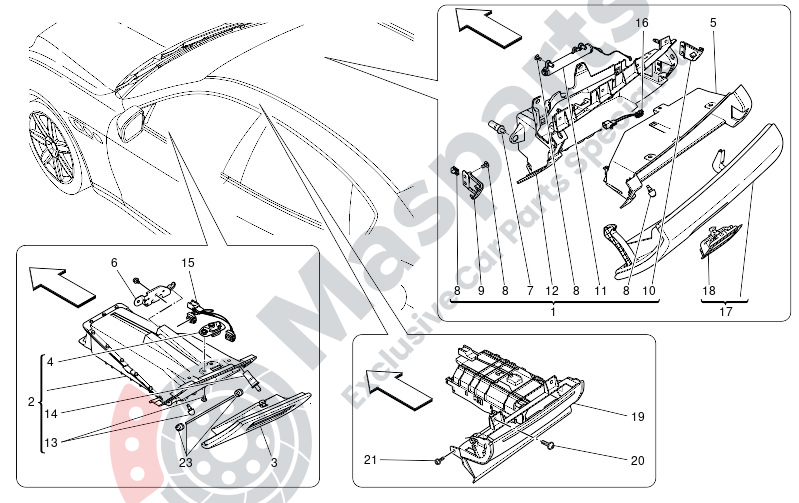

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673001299 | Cpl Glove Compartment |
€122,36 |
|
|
| 2 | M-673001334 | Cpl Driver-Side Glove Box Co |
€195,04 |
|
|
| 4 | M-673001337 | Lock |
€31,83 |
|
|
| 7 | M-673001307 | Drawer Opening Switch |
€8,51 |
|
|
| 8 | M-673001305 | Glove Box Compartment Fixing |
€13,09 |
|
|
| 9 | M-673001303 | Lh Bracket |
€2,61 |
|
|
| 10 | M-673001302 | Rh Bracket |
€2,61 |
|
|
| 11 | M-673001301 | Restrainer |
€28,52 |
|
|
| 12 | M-673001300 | Drawer |
€65,78 |
|
|
| 13 | M-673001339 | Glove Box Compartment Fixing |
€5,44 |
|
|
| 14 | M-673001307 | Drawer Opening Switch |
€8,51 |
|
|
| 16 | M-675000656 | Glove Box Led And Cover |
€15,90 |
|
|
| 20 | M-670006374 | Screw |
€2,50 |
|
|
| 21 | M-675000308 | Screw |
€1,42 |
|
|
| 23 | M-673009993 | Fixing Kit Driver Glove Box |
€30,36 |
|
