Diagram image not available

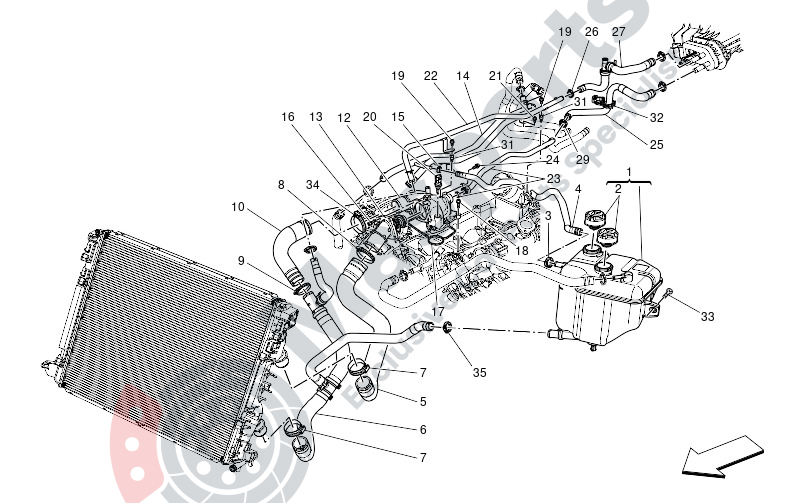

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031649 | Cpl. Coolant Tank |
$85.56 |
|
|
| 2 | M-670003408 | Mount Plug |
$13.53 |
|
|
| 3 | M-675000344 | Strap Collar |
$2.35 |
|
|
| 4 | M-292070 | Breather Pipe Water |
$61.60 |
|
|
| 5 | M-670001541 | Water Inlet Sleeve To Radiat |
$68.75 |
|
|
| 6 | M-670005612 | Water Outlet Sleeve From Rad |
$211.03 |
|
|
| 7 | M-675000345 | Screw Collar |
$3.68 |
|
|
| 8 | M-675000345 | Screw Collar |
$3.68 |
|
|
| 9 | M-11417670 | Nemo Bes Fastening Collar D3 |
$9.50 |
|
|
| 10 | M-294684 | Sleeve. |
$272.14 |
|
|
| 12 | M-304372 | H2O Thermostat Cover |
$473.36 |
|
|
| 13 | M-287652 | Water Termostat |
$215.45 |
|
|
| 14 | M-302334 | Inlet/Outlet Water Hose |
$93.58 |
|
|
| 15 | M-11431090 | Clamp |
$4.46 |
|
|
| 16 | M-231619 | Socket Head Screw With Washe |
$2.39 |
|
|
| 17 | M-295159 | Gasket |
$43.86 |
|
|
| 18 | M-231620 | Socket Head Screw With Washe |
$1.60 |
|
|
| 19 | M-231616 | Screw |
$2.03 |
|
|
| 20 | M-180137 | Water Temperature Sensor |
$38.63 |
|
|
| 21 | M-231616 | Screw |
$2.03 |
|
|
| 22 | M-304042 | Water Pipe From Heater |
$78.02 |
|
|
| 23 | M-304041 | Water Pipe To Heater |
$101.22 |
|
|
| 24 | M-231617 | Socket Head Screw With Washe |
$2.39 |
|
|
| 25 | M-670005422 | Water Delivery Sleeve To Hea |
$33.52 |
|
|
| 26 | M-675000370 | Strap Collar |
$1.98 |
|
|
| 27 | M-670002206 | Water Return Sleeve From Hea |
$49.56 |
|
|
| 29 | M-675000370 | Strap Collar |
$1.98 |
|
|
| 31 | M-287940 | Stud |
$13.37 |
|
|
| 32 | M-670005921 | Heating Water Pipe Retaining |
$3.02 |
|
|
| 33 | M-675000088 | Screw |
$2.58 |
|
|
| 34 | M-272913 | Screw Collar |
$5.08 |
|
|
| 35 | M-675000658 | Snap Collar |
$5.48 |
|
