Diagram image not available

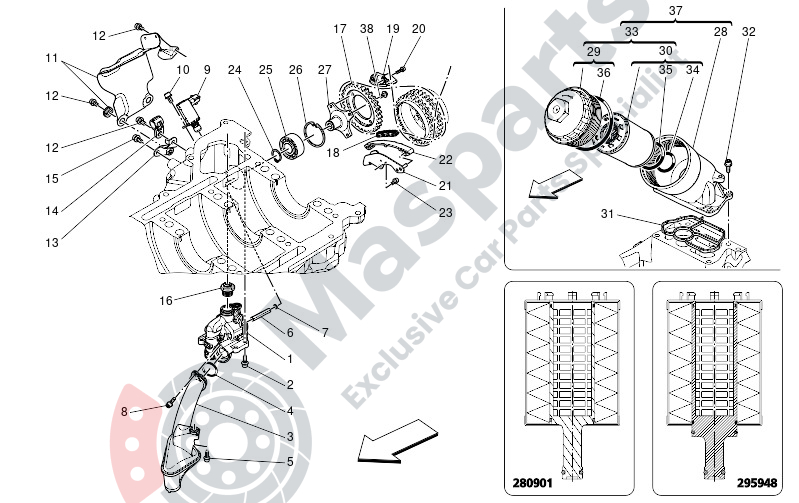

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-807411 | Oil Pump Assembly |
$969.99 |
|
|
| 2 | M-282409 | Screw |
$3.68 |
|
|
| 3 | M-285927 | Suction Pump Oil |
$41.27 |
|
|
| 4 | M-271463 | O.R. Gasket |
$2.40 |
|
|
| 5 | M-282396 | Screw |
$2.85 |
|
|
| 6 | M-288129 | Oil Pump Control Hex.Bar |
$15.06 |
|
|
| 7 | M-11057076 | Seeger Ring |
$2.51 |
|
|
| 8 | M-282397 | Screw |
$2.38 |
|
|
| 9 | M-269972 | Oil Pressure Valve |
$164.20 |
|
|
| 10 | M-233600 | Screw |
$2.28 |
|
|
| 11 | M-291662 | Heat Guard |
$133.55 |
|
|
| 12 | M-231616 | Screw |
$2.02 |
|
|
| 13 | M-279626 | Bracket |
$7.89 |
|
|
| 14 | M-244219 | Clip |
$6.43 |
|
|
| 15 | M-233600 | Screw |
$2.28 |
|
|
| 16 | M-294614 | Non Return Valve |
$14.81 |
|
|
| 17 | M-286225 | Pumps Control Toothed Wheel |
$158.50 |
|
|
| 18 | M-271871 | Oil Pump Chain |
$87.17 |
|
|
| 20 | M-282397 | Screw |
$2.38 |
|
|
| 21 | M-276463 | Guide Shoe Support |
$18.45 |
|
|
| 22 | M-272014 | Mobile Guide Shoe |
$59.06 |
|
|
| 23 | M-282393 | Screw |
$3.80 |
|
|
| 24 | M-11066876 | Seeger Ring For Shaft D.20 |
$5.13 |
|
|
| 25 | M-247049 | Bearing |
$49.03 |
|
|
| 26 | M-11060276 | Seeger Ring |
$1.69 |
|
|
| 27 | M-288133 | Oil Pump Shaft Joint |
$109.15 |
|
|
| 28 | M-295277 | Oil Filter Support |
$102.50 |
|
|
| 29 | M-286244 | Threaded Plug |
$74.60 |
|
|
| 30 | M-280901 | Oil Filter Cartridge |
$46.15 |
|
|
| 31 | M-270805 | Oil Filter Gasket |
$17.88 |
|
|
| 32 | M-231618 | Screw |
$1.09 |
|
|
| 33 | M-290877 | M156 Cpl Oil Filter |
$74.53 |
|
|
| 35 | M-167135 | O-Ring D.267X178 |
$1.66 |
|
|
| 37 | M-295950 | V8 Complete Oil Filter Assem |
$170.53 |
|
|
| 38 | M-284899 | Hex Washer Screw |
$17.56 |
|
