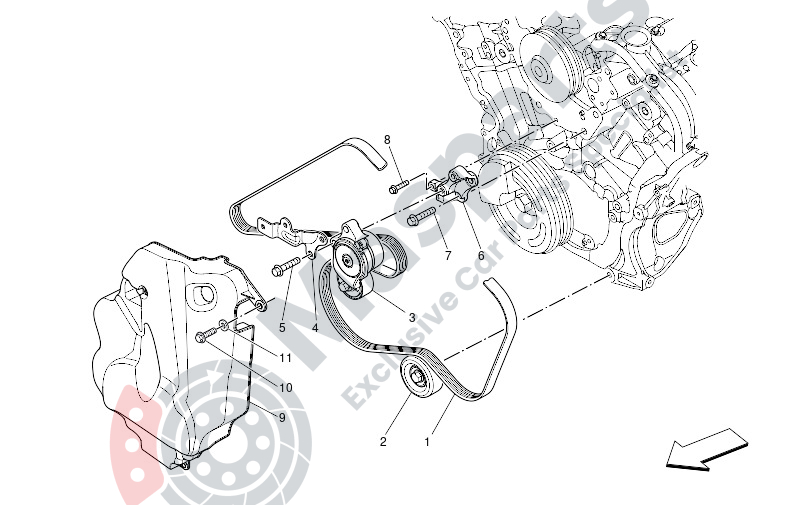

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328348 | Belt |
$87.85 |
|
|
| 2 | M-46328756 | Belt Tensioner Pulley |
$110.30 |
|
|
| 3 | M-46330311 | Belt Tensioner |
$120.44 |
|
|
| 4 | M-46328316 | Bracket |
$28.74 |
|
|
| 5 | M-46328718 | Flange Bolt |
$3.38 |
|
|
| 6 | M-46328519 | Tensioner Bracket |
$69.73 |
|
|
| 7 | M-46328718 | Flange Bolt |
$3.38 |
|
|
| 8 | M-46328691 | Flange Bolt |
$2.96 |
|
|
| 9 | M-670009058 | Soundproof Guard |
$87.67 |
|
|
| 11 | M-675000391 | Washer |
$1.90 |
|
