Diagram image not available

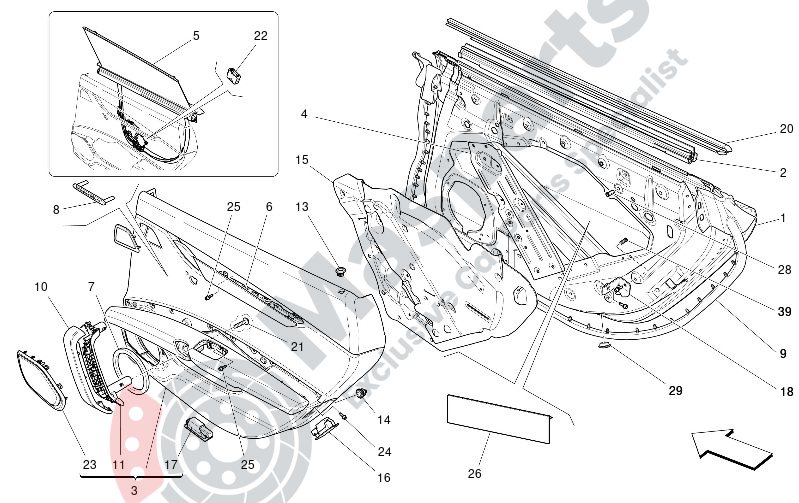

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673008059 | Cpl Rh Rear Door |
$1,682.11 |
|
|
| 4 | M-670108197 | Rh Rear Door Reinforcement |
$21.53 |
|
|
| 7 | M-673001453 | Gasket |
$22.74 |
|
|
| 8 | M-673001459 | Label Bower & Wilkins |
$38.13 |
|
|
| 9 | M-670037608 | R.H. Rear Door Gasket |
$173.20 |
|
|
| 13 | M-673001443 | Rh Rear Door Bushing |
$54.37 |
|
|
| 14 | M-670219478 | Perno Di Fiss. |
$2.78 |
|
|
| 16 | M-670007082 | Door Light |
$31.15 |
|
|
| 17 | M-675000265 | Door Lamp Black |
$11.35 |
|
|
| 18 | M-670005887 | Rh Bracket |
$5.57 |
|
|
| 20 | M-670009933 | Rh Rear Door Glass Scraper G |
$175.26 |
|
|
| 21 | M-673002001 | Screw For Carrier Pull Handl |
$13.01 |
|
|
| 22 | M-673003891 | Rear Lh And Rh Sunshade Ctr. |
$222.69 |
|
|
| 24 | M-670008293 | Screw |
$2.06 |
|
|
| 25 | M-670008293 | Screw |
$2.06 |
|
|
| 26 | M-670034380 | Doors Soundproofing Adhesive |
$3.51 |
|
|
| 28 | M-670005149 | Rivet |
$2.86 |
|
|
| 39 | M-670155282 | Pin |
$2.86 |
|
