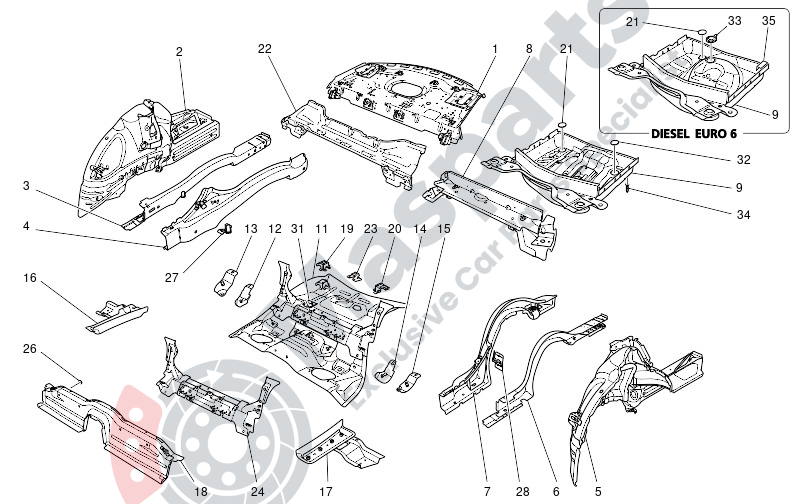

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009303 | Rear Under Window Panel. |
$440.48 |
|
|
| 2 | M-673009036 | Cpl Rh Rear Wheel House |
$486.49 |
|
|
| 3 | M-673007336 | Rh Rear Floor Longitudinal M |
$262.48 |
|
|
| 4 | M-673009040 | Rh Outer Rear Side Member ˇ |
$432.85 |
|
|
| 6 | M-673007335 | Lh Rear Floor Longitudinal M |
$229.80 |
|
|
| 7 | M-673007210 | Lh Outer Rear Side Member ˇ |
$467.43 |
|
|
| 8 | M-673010187 | Complete Rear Cross Member |
$243.66 |
|
|
| 9 | M-673006256 | Complete Spare Wheel Step |
$415.97 |
|
|
| 11 | M-673005385 | Rear Floor |
$263.73 |
|
|
| 12 | M-673000380 | Rh Rear Seat Belt Fastening |
$298.14 |
|
|
| 13 | M-673000419 | Rh Rear Seat Fastening Reinf |
$258.52 |
|
|
| 14 | M-673000381 | Lh Rear Seat Belt Fastening |
$260.50 |
|
|
| 15 | M-673000420 | Lh Rear Seat Fastening Reinf |
$258.52 |
|
|
| 16 | M-673000379 | Rh Small Side Member Gearshi |
$71.96 |
|
|
| 17 | M-673000382 | Lh Small Side Member Gearshi |
$71.96 |
|
|
| 18 | M-673000790 | Rear Underseat Cross Member |
$158.48 |
|
|
| 19 | M-673000436 | Rh Luggage Net Fastening Rei |
$38.61 |
|
|
| 20 | M-673000437 | Lh Luggage Net Fastening Rei |
$24.98 |
|
|
| 21 | M-670005954 | Plug |
$4.59 |
|
|
| 22 | M-673000407 | Cpl Rear Seat Back Cross Mem |
$128.77 |
|
|
| 23 | M-673001060 | Rear Seats Cushion Support B |
$26.73 |
|
|
| 24 | M-673001059 | Isofix Crossmember |
$281.30 |
|
|
| 26 | M-675000244 | Plug |
$1.00 |
|
|
| 27 | M-670007021 | Bracket |
$523.17 |
|
|
| 28 | M-670007023 | Bracket |
$523.17 |
|
|
| 31 | M-670006184 | Plate |
$13.21 |
|
|
| 32 | M-675000518 | Cap 70 Mm (Diam.) |
$3.74 |
|
|
| 34 | M-675000624 | Specila Screw |
$1.74 |
|
