Diagram image not available

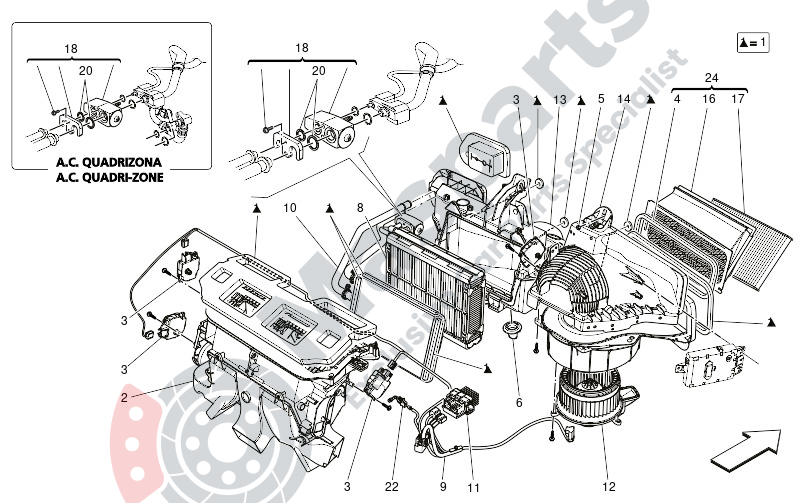

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673000099 | Lhd Kit Gasket |
$253.52 |
|
|
| 2 | M-673000097 | Lhd Module Air Distribution |
$522.51 |
|
|
| 3 | M-673005493 | Hvac Actuator |
$156.16 |
|
|
| 4 | M-670007353 | Gasket |
$30.11 |
|
|
| 5 | M-675000093 | Nut |
$1.43 |
|
|
| 6 | M-675000425 | Condensation Outlet Hose |
$17.25 |
|
|
| 8 | M-673003702 | Lhd Evaporator |
$642.71 |
|
|
| 9 | M-673000090 | Lhd Cable |
$153.18 |
|
|
| 10 | M-673000093 | Lhd Kit Heating |
$603.68 |
|
|
| 11 | M-673009866 | Power Modulo |
$305.05 |
|
|
| 12 | M-673000088 | Lhd Fan |
$442.19 |
|
|
| 13 | M-673000095 | Lhd Evaporator Structure |
$166.95 |
|
|
| 14 | M-673000101 | Lhd Module Inlet Air |
$355.55 |
|
|
| 16 | M-670005020 | Air Conditioner Box |
$31.23 |
|
|
| 17 | M-670005021 | Pollen Filter |
$50.13 |
|
|
| 18 | M-673003704 | Txv Kit |
$227.76 |
|
|
| 20 | M-673005761 | Txv Gaskets Kit |
$114.39 |
|
|
| 22 | M-673000104 | Temperature Sensor |
$30.02 |
|
|
| 24 | M-670004016 | Air Conditioner Box With Pol |
$83.13 |
|
