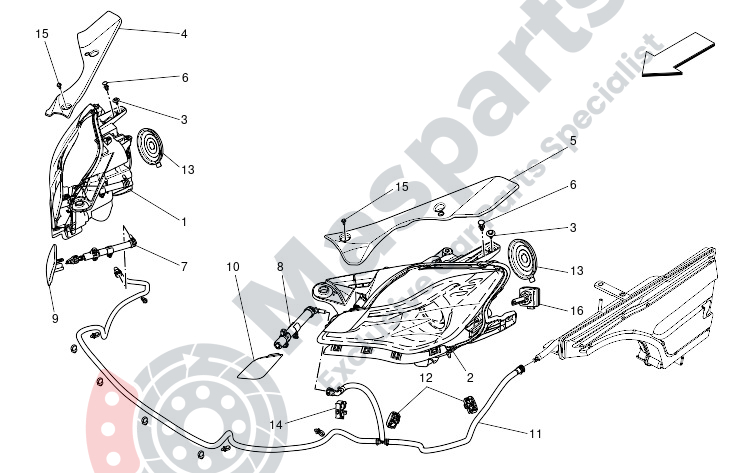

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670104195 | Quattroporte Rh Front Headlight (2014 Onwards) |
$3,026.49 |
|
|
| 2 | M-670104199 | Quattroporte Lh Headlight (2014 Onwards) |
$1,967.03 |
|
|
| 3 | M-675000011 | Screw |
$2.59 |
|
|
| 6 | M-675000053 | Rivet |
$1.91 |
|
|
| 7 | M-673000039 | Rh Telescopic Headlight Wash |
$97.64 |
|
|
| 8 | M-673000038 | Lh Telescopic Headlight Wash |
$95.81 |
|
|
| 9 | M-673008002 | Rh Headlight Washer Plate |
$36.06 |
|
|
| 10 | M-673008001 | Lh Headlight Washer Plate |
$36.45 |
|
|
| 11 | M-670007620 | Pipes For Headlight Washer S |
$75.21 |
|
|
| 12 | M-670006382 | Clip |
$1.69 |
|
|
| 13 | M-673000040 | Cap |
$7.24 |
|
|
| 14 | M-670005014 | Clip |
$2.75 |
|
|
| 15 | M-675000488 | Screw |
$1.08 |
|
|
| 16 | M-673005741 | Xenon Lamp |
$151.83 |
|
