Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

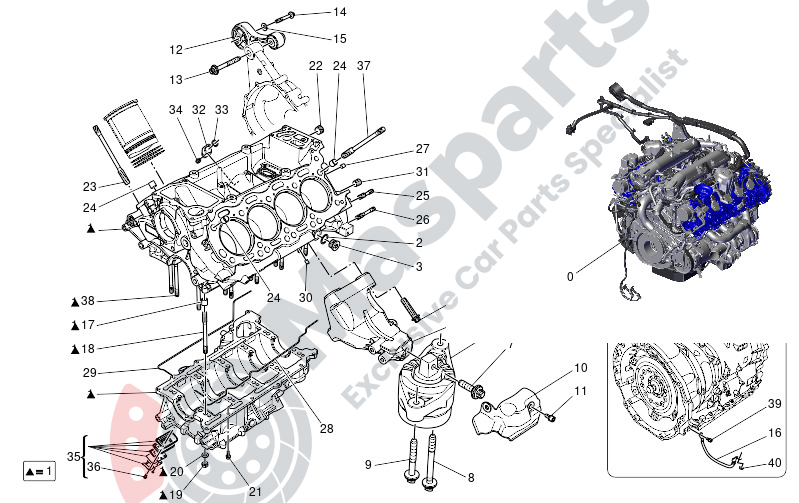

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 0 | M-670003028 | New Complete Engine V8 530 |
$28,148.58 |
|
|
| 1 | M-339344 | Cpl Crankcase |
$4,132.18 |
|
|
| 2 | M-10263460 | Gasket 22- 28X 1.5 |
$1.72 |
|
|
| 3 | M-282754 | Threaded Plug |
$6.56 |
|
|
| 4 | M-330935 | Right-Hand Engine Bracket |
$225.53 |
|
|
| 5 | M-290126 | Screw |
$42.80 |
|
|
| 6 | M-670004871 | Rubber |
$259.95 |
|
|
| 7 | M-670003759 | Screw |
$6.67 |
|
|
| 8 | M-670009954 | Special Screw (With Washer) |
$8.77 |
|
|
| 9 | M-675000024 | Screw |
$2.42 |
|
|
| 10 | M-670003985 | Transmission Heat Shield |
$18.42 |
|
|
| 12 | M-670004872 | Link Rod |
$89.67 |
|
|
| 13 | M-670003869 | Screw |
$10.76 |
|
|
| 14 | M-675000146 | Screw |
$5.81 |
|
|
| 15 | M-675000096 | Washer |
$1.16 |
|
|
| 16 | M-670007404 | Ground Cable For Engine-Fram |
$182.74 |
|
|
| 17 | M-102725 | Centring Dowel D.8X8 |
$1.72 |
|
|
| 18 | M-270465 | Threaded Stud |
$28.50 |
|
|
| 19 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.80 |
|
|
| 20 | M-178348 | Machined Washer D.10.2-20X2. |
$3.66 |
|
|
| 21 | M-231620 | Socket Head Screw With Washe |
$1.63 |
|
|
| 22 | M-282753 | Threaded Plug |
$8.15 |
|
|
| 23 | M-270464 | Threaded Stud |
$26.34 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
$6.39 |
|
|
| 25 | M-278120 | Threaded Stud |
$30.00 |
|
|
| 26 | M-278119 | Threaded Stud |
$27.96 |
|
|
| 27 | M-102725 | Centring Dowel D.8X8 |
$1.72 |
|
|
| 28 | M-339289 | Lh Crankcase Gasket |
$53.36 |
|
|
| 29 | M-339298 | Rh Crankcase Gasket |
$114.12 |
|
|
| 30 | M-10839610 | Centering Dowel |
$1.23 |
|
|
| 31 | M-291078 | Threaded Plug |
$3.58 |
|
|
| 32 | M-265562 | Flange |
$22.86 |
|
|
| 33 | M-264447 | O-Ring |
$1.11 |
|
|
| 34 | M-231617 | Socket Head Screw With Washe |
$2.44 |
|
|
| 35 | M-255138 | Blow By Valve Assembly |
$72.23 |
|
|
| 37 | M-271564 | Threaded Stud |
$30.00 |
|
|
| 38 | M-270466 | Threaded Stud |
$31.93 |
|
|
| 39 | M-675000383 | Screw |
$1.22 |
|
|
| 40 | M-675000505 | Nut |
$3.01 |
|
