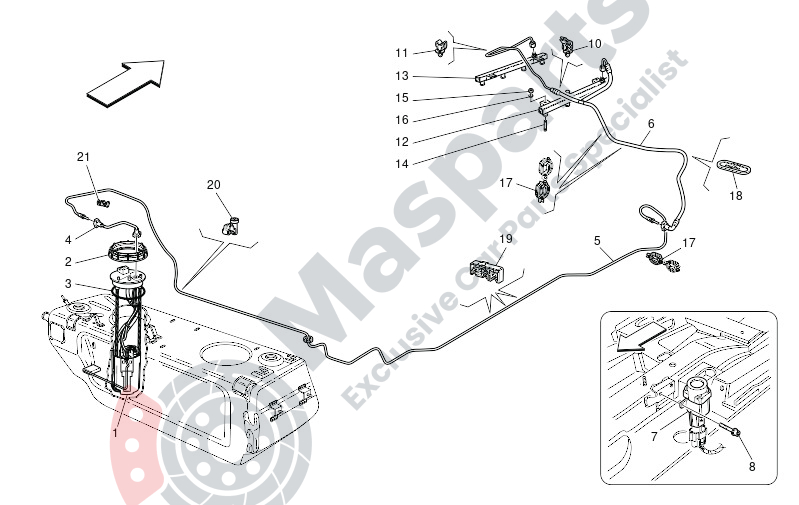

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-214369 | Complete Fuel Pump |
$479.10 |
|
|
| 2 | M-181682 | Pump Fastening Ring Nut |
$30.72 |
|
|
| 3 | M-181681 | Pump Fastening Ring Nut Gask |
$28.04 |
|
|
| 4 | M-219391 | Fuel Deliv. Pipe (Pump Wir.H |
$33.47 |
|
|
| 5 | M-218483 | Fuel Pipe From Pump To Conne |
$103.34 |
|
|
| 6 | M-256139 | Fuel Delivery Tube From Conn |
$216.07 |
|
|
| 7 | M-163675 | Inertial Switch |
$32.59 |
|
|
| 8 | M-13355424 | Screw |
$29.29 |
|
|
| 10 | M-226603 | Pipe Retaining Clip D.8 |
$2.35 |
|
|
| 11 | M-198271 | Clip. |
$2.94 |
|
|
| 12 | M-215338 | Fuel Pipe With Injectors |
$1,159.24 |
|
|
| 13 | M-215337 | Fuel Pipe With Injectors |
$1,062.48 |
|
|
| 14 | M-13516824 | Stud 8X12 Stem 20 M8_2 |
$11.11 |
|
|
| 15 | M-16102314 | Nut |
$1.46 |
|
|
| 16 | M-11198074 | Tapered Rubber Washer D8.5-1 |
$1.30 |
|
|
| 17 | M-191907 | Clip |
$4.35 |
|
|
| 18 | M-221727 | Gasket |
$6.41 |
|
|
| 19 | M-233484 | Clip |
$10.36 |
|
|
| 20 | M-201426 | Clip |
$5.49 |
|
|
| 21 | M-238072 | Clip |
$4.93 |
|
