Diagram image not available

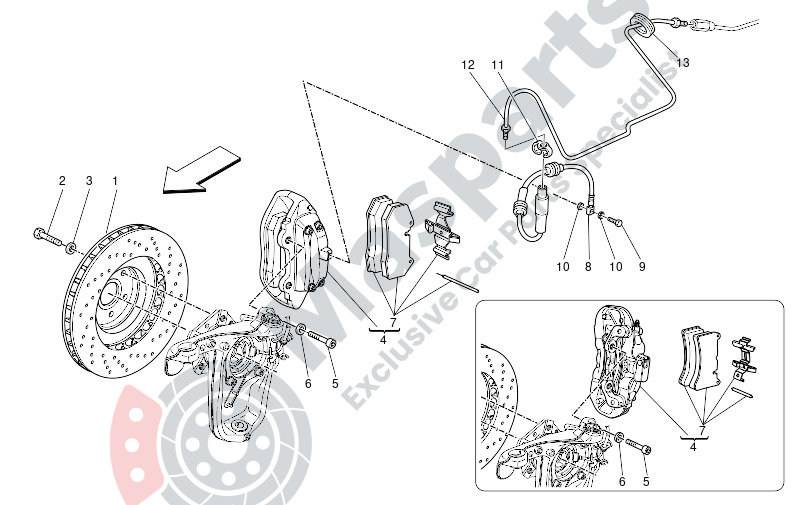

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-235318 | Drilled Front Brake Disc D36 |
$682.81 |
|
|
| 2 | M-16043424 | Screw |
$3.97 |
|
|
| 3 | M-12601374 | Washer |
$1.37 |
|
|
| 5 | M-14311734 | Socket Head Screw M14X1.5X4 |
$31.22 |
|
|
| 6 | M-11194174 | Washer. |
$2.99 |
|
|
| 7 | M-673012044 | Front Brake Pads Set |
$860.29 |
|
|
| 9 | M-198489 | Front Caliper Filler Neck |
$5.25 |
|
|
| 10 | M-219553 | Sealing Washer On Front Cali |
$15.76 |
|
|
| 11 | M-228185 | Clip. |
$4.61 |
|
|
| 12 | M-198082 | R.H.Rigid Pipe Connection-Fr |
$14.72 |
|
|
| 13 | M-10396680 | Cable Grommet. |
$1.74 |
|
