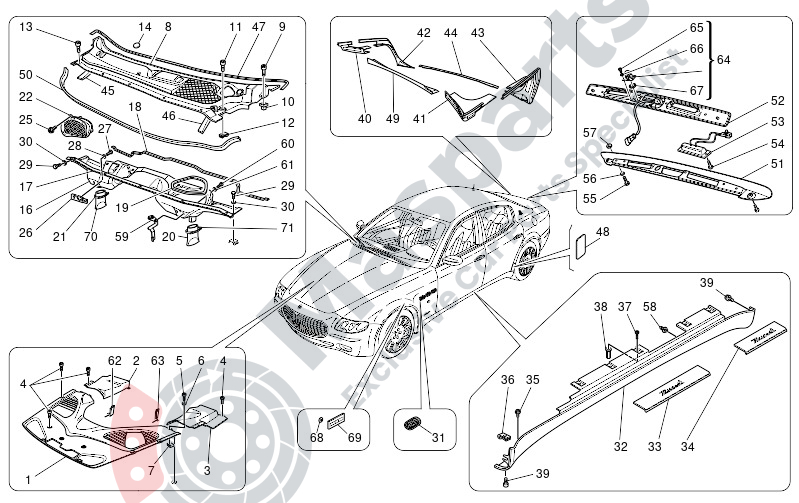

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-67065000 | Engine Compartment Cover. |
$174.19 |
|
|
| 2 | M-69636400 | R.H. Central Cover For Engin |
$145.11 |
|
|
| 3 | M-81048300 | L.H. Central Cover For Engin |
$144.05 |
|
|
| 4 | M-67721000 | Screw. |
$9.38 |
|
|
| 5 | M-13274177 | Screw |
$1.86 |
|
|
| 6 | M-12638178 | Washer |
$1.80 |
|
|
| 7 | M-67257100 | Bracket |
$1.80 |
|
|
| 9 | M-15783377 | Screw |
$2.45 |
|
|
| 10 | M-67611500 | Block. |
$0.99 |
|
|
| 11 | M-68806600 | Neck Screw M5 |
$3.48 |
|
|
| 12 | M-67883500 | Bracket. |
$3.10 |
|
|
| 13 | M-15534401 | Screw |
$2.18 |
|
|
| 14 | M-312320384 | Gasket |
$1.11 |
|
|
| 16 | M-69632200 | Dashboard Upper Framework |
$293.40 |
|
|
| 17 | M-67573300 | Front Gasket. |
$10.89 |
|
|
| 18 | M-67573500 | Rear Gasket. |
$45.61 |
|
|
| 19 | M-67574800 | Motor Cover Gasket |
$24.15 |
|
|
| 20 | M-69638100 | Water Outlet Sleeve |
$14.04 |
|
|
| 21 | M-105550 | Screw Collar |
$2.71 |
|
|
| 22 | M-69632400 | Air Ducting |
$114.50 |
|
|
| 25 | M-67998800 | Screw. |
$2.64 |
|
|
| 26 | M-67713900 | Bracket. |
$7.87 |
|
|
| 27 | M-10902111 | Screw. |
$1.35 |
|
|
| 28 | M-12639724 | Washer |
$1.36 |
|
|
| 29 | M-10977714 | Screw. |
$1.72 |
|
|
| 30 | M-14446521 | Washer. |
$1.80 |
|
|
| 31 | M-69283200 | R.H. Lateral Air Outlet Open |
$26.20 |
|
|
| 32 | M-980139642 | Rh Side Guard |
$611.16 |
|
|
| 33 | M-66518500 | Front Kick Plate. |
$120.75 |
|
|
| 34 | M-67066000 | Rear Kick Plate. |
$35.18 |
|
|
| 35 | M-16285014 | Screw. |
$3.92 |
|
|
| 36 | M-67278400 | Bracket. |
$1.72 |
|
|
| 37 | M-15783304 | Screw. |
$5.12 |
|
|
| 38 | M-67611500 | Block. |
$0.99 |
|
|
| 39 | M-67721000 | Screw. |
$9.38 |
|
|
| 40 | M-68473900 | R.H. Inner Covering |
$64.71 |
|
|
| 41 | M-68474000 | L.H. Inner Covering |
$64.71 |
|
|
| 42 | M-68474100 | R.H. Outer Covering |
$77.04 |
|
|
| 43 | M-68474200 | L.H. Outer Covering |
$77.04 |
|
|
| 44 | M-67720600 | Rear Bumper Cover. |
$59.60 |
|
|
| 45 | M-66899500 | R.H. Side Rubber |
$24.69 |
|
|
| 46 | M-66899600 | Lh Side Insulation Rubber |
$27.27 |
|
|
| 47 | M-980139475 | Rubber For Central Insulatio |
$164.18 |
|
|
| 48 | M-68009700 | R.H.Rear Adhesive For Protec |
$12.93 |
|
|
| 49 | M-68473800 | Central Covering |
$77.38 |
|
|
| 50 | M-66516700 | Front Hood Bonnet Gasket. |
$51.19 |
|
|
| 51 | M-980139515 | Number Plate Light Plate |
$259.33 |
|
|
| 52 | M-980139516 | Number Plate Light Trim Plat |
$188.87 |
|
|
| 53 | M-188288 | Dome Light Number Plate Ligh |
$28.11 |
|
|
| 54 | M-16082401 | Screw |
$1.86 |
|
|
| 55 | M-15902670 | Tbic Screw D. 3.5X 9.5 T |
$9.38 |
|
|
| 56 | M-14497704 | Split Washer D. 4.30- 8.00X0 |
$1.20 |
|
|
| 57 | M-14228076 | C-Type Plate For Pin D.5 |
$6.37 |
|
|
| 58 | M-14188282 | Clip |
$1.43 |
|
|
| 59 | M-81430100 | Bracket |
$189.60 |
|
|
| 60 | M-10902111 | Screw. |
$1.35 |
|
|
| 61 | M-12639724 | Washer |
$1.36 |
|
|
| 62 | M-67714000 | R.H.Bracket |
$15.63 |
|
|
| 63 | M-67714100 | L.H.Bracket |
$15.82 |
|
|
| 64 | M-980139456 | Boot Lock Kit |
$72.98 |
|
|
| 65 | M-15902675 | Screw |
$2.18 |
|
|
| 66 | M-14497704 | Split Washer D. 4.30- 8.00X0 |
$1.20 |
|
|
| 67 | M-81459300 | Gasket |
$3.26 |
|
|
| 68 | M-68944800 | Clip |
$2.18 |
|
|
| 69 | M-68944700 | Plate |
$1.49 |
|
|
| 70 | M-68472500 | Water Outlet Sleeve. |
$16.44 |
|
