Diagram image not available

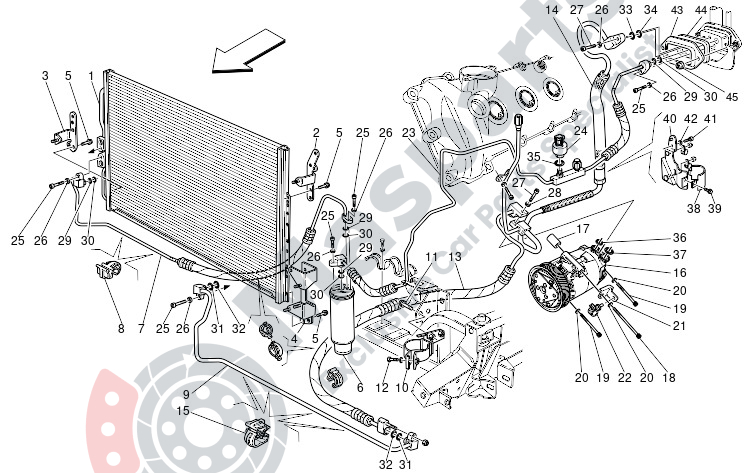

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-189215 | A.C.Condenser. |
$538.64 |
|
|
| 2 | M-199515 | R.H.Upper Bracket. |
$43.74 |
|
|
| 3 | M-199672 | R.H.Lower Bracket. |
$8.39 |
|
|
| 4 | M-199516 | L.H.Lower Bracket. |
$18.38 |
|
|
| 5 | M-165137 | Screw |
$1.86 |
|
|
| 6 | M-67085100 | Dehydrating Filter |
$43.24 |
|
|
| 7 | M-68668700 | Pipe From Condenser To Filte |
$103.43 |
|
|
| 8 | M-67579900 | Clip. |
$1.11 |
|
|
| 9 | M-67306300 | Pipe From Joint To Condenser |
$90.65 |
|
|
| 10 | M-67060400 | Complete Dehydrating Filter |
$18.38 |
|
|
| 11 | M-16287127 | Screw. |
$1.92 |
|
|
| 12 | M-11612524 | Screw. |
$2.93 |
|
|
| 13 | M-69627900 | Pipe From Compressor To Cond |
$328.84 |
|
|
| 14 | M-81252500 | Pipe From Compressor To Shie |
$414.72 |
|
|
| 15 | M-379290721 | Clip |
$1.80 |
|
|
| 16 | M-284728 | AC Delphi Compressor |
$2,418.03 |
|
|
| 17 | M-141496 | Spacer Bet.Actuator And Gear |
$12.90 |
|
|
| 18 | M-175428 | Socket Head Screw M8X120 |
$10.54 |
|
|
| 19 | M-14307124 | Socket Head Screw M 8X 90 |
$18.06 |
|
|
| 20 | M-11193874 | Washer |
$1.35 |
|
|
| 21 | M-227256 | Bracket |
$32.68 |
|
|
| 22 | M-67063200 | Clip. |
$3.65 |
|
|
| 23 | M-67306500 | Pipe From Filter To Shield. |
$383.49 |
|
|
| 24 | M-65628200 | Pressostat |
$144.42 |
|
|
| 25 | M-14305424 | Screw |
$1.71 |
|
|
| 26 | M-12601274 | Washer |
$1.37 |
|
|
| 27 | M-14305724 | Screw |
$1.71 |
|
|
| 28 | M-127494 | Washer |
$1.19 |
|
|
| 29 | M-68392000 | O-Ring 0691154 |
$7.30 |
|
|
| 30 | M-68392100 | O-Ring 069861 |
$4.93 |
|
|
| 31 | M-66309700 | O-Ring 069862 |
$18.38 |
|
|
| 32 | M-68392700 | O-Ring 0691177 |
$3.71 |
|
|
| 33 | M-68392800 | O-Ring 0691178 |
$5.77 |
|
|
| 34 | M-66309800 | O-Ring 069863 |
$18.38 |
|
|
| 35 | M-66309600 | O-Ring 069579 |
$18.38 |
|
|
| 36 | M-67085400 | Or Gasket For 7Cvc Compr. (D |
$24.29 |
|
|
| 37 | M-67085300 | Or Gasket For 7Cvc Compr. (I |
$24.29 |
|
|
| 38 | M-68199800 | Bracket |
$14.51 |
|
|
| 39 | M-16297627 | Screw. |
$2.17 |
|
|
| 40 | M-222959 | Bracket |
$133.08 |
|
|
| 41 | M-14305724 | Screw |
$1.71 |
|
|
| 42 | M-11197774 | Washer |
$2.23 |
|
|
| 43 | M-80964400 | Flange |
$17.68 |
|
|
| 44 | M-80964500 | Gasket |
$5.28 |
|
|
| 45 | M-14040611 | Nut |
$1.71 |
|
