The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

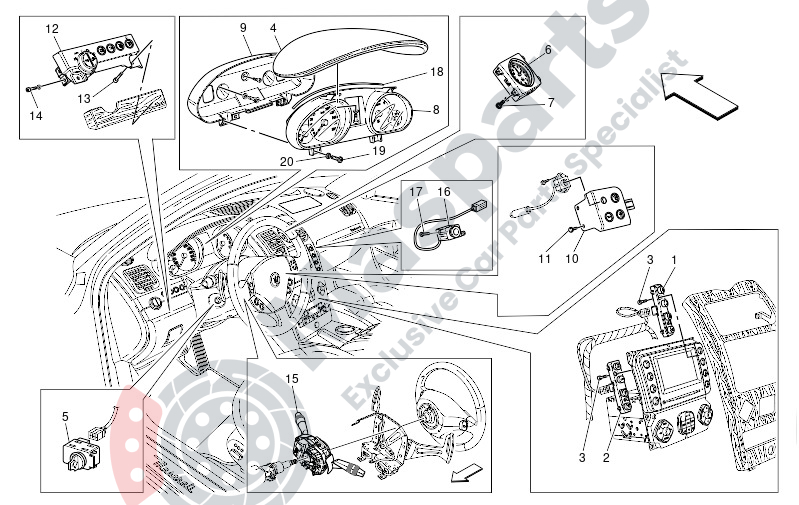

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-213121 | R.H.Controls Switch Panel Fo |
$221.24 |
|
|
| 2 | M-216858 | L.H. Controls Switch Panel F |
$156.51 |
|
|
| 3 | M-16082301 | A/Mt/Tbfnic Screw 3X12 |
$2.12 |
|
|
| 5 | M-197645 | Steering Column Adjust. Cont |
$60.46 |
|
|
| 6 | M-208581 | Clock (My2009) |
$346.23 |
|
|
| 7 | M-15901570 | Screw |
$1.03 |
|
|
| 8 | M-275857 | Instrument Panelkm M139 |
$1,758.03 |
|
|
| 9 | M-80374300 | Instrument Housing |
$525.03 |
|
|
| 11 | M-14440827 | Screw |
$2.13 |
|
|
| 13 | M-14775211 | Screw For Steering Wheel |
$2.03 |
|
|
| 14 | M-14440827 | Screw |
$2.13 |
|
|
| 15 | M-281701 | Steering Column Stalk |
$999.42 |
|
|
| 16 | M-188251 | Glove Compt. Opening Switch |
$102.41 |
|
|
| 17 | M-16083401 | Screw. |
$2.16 |
|
|
| 18 | M-208575 | Felt 10X380Mm |
$0.94 |
|
|
| 19 | M-11568124 | Screw |
$2.86 |
|
|
| 20 | M-12646624 | Washer |
$1.90 |
|
