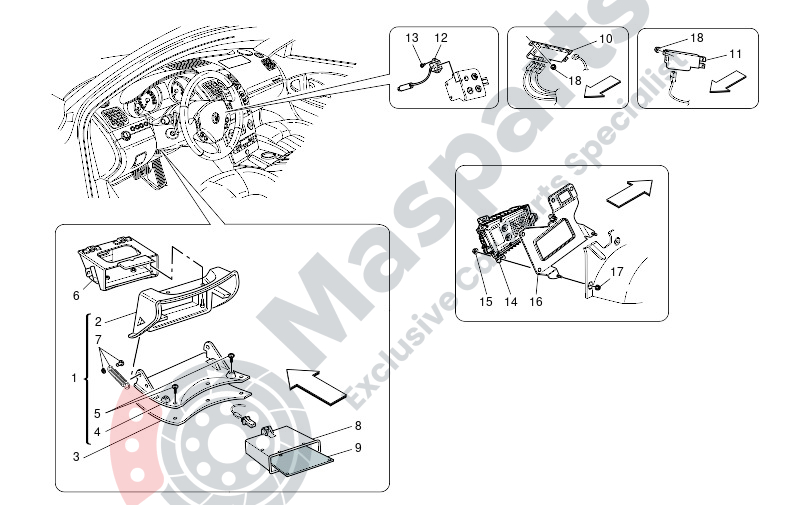

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980139372 | Cpl. Cd Compartment |
$151.03 |
|
|
| 4 | M-67489800 | Cd Compartment Door. |
$164.86 |
|
|
| 5 | M-66736200 | Glove Comp.Door Endoftravel |
$83.12 |
|
|
| 6 | M-67489600 | Cd Support Bracket |
$205.28 |
|
|
| 7 | M-980139373 | Complete Door Movement Kit. |
$41.02 |
|
|
| 8 | M-67490000 | Under Steer.Wheel Compartment |
$76.48 |
|
|
| 9 | M-67575200 | Pocket Change Comp.Carpet |
$19.05 |
|
|
| 12 | M-192522 | Audiopilot Microphone. |
$71.08 |
|
|
| 13 | M-68462500 | Screw |
$1.94 |
|
|
| 15 | M-14059211 | Nut |
$1.49 |
|
|
| 16 | M-239090 | Bracket (My2009) |
$30.42 |
|
|
| 17 | M-14059211 | Nut |
$1.49 |
|
|
| 18 | M-14039414 | Nut For Third Brake Light |
$1.53 |
|
