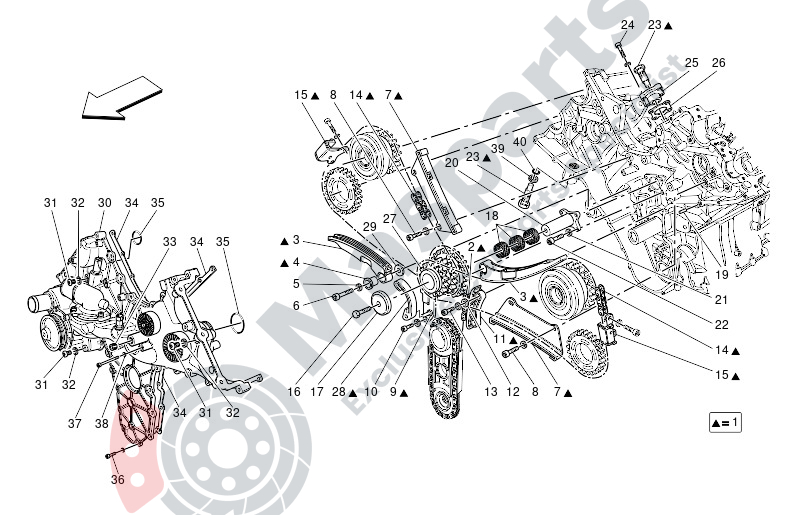

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-319940 | Timing Control And Oil Pump |
$1,146.52 |
|
|
| 2 | M-175286 | Transmission Chain 23X236X48 |
$37.94 |
|
|
| 3 | M-186184 | Mobile Runner |
$106.84 |
|
|
| 4 | M-175303 | Movable Runner Fast. Bushing |
$20.18 |
|
|
| 5 | M-10569373 | Washer For Tensioner Guide |
$1.66 |
|
|
| 6 | M-14306424 | Screw |
$2.02 |
|
|
| 7 | M-186185 | Cpl Timing System Fixed Runn |
$78.30 |
|
|
| 8 | M-231627 | Socket Head Screw With Washe |
$5.55 |
|
|
| 9 | M-186159 | Runner Mount |
$38.53 |
|
|
| 10 | M-231616 | Screw |
$2.02 |
|
|
| 11 | M-306094 | Chain Guide |
$33.04 |
|
|
| 12 | M-11197774 | Washer |
$2.17 |
|
|
| 13 | M-231619 | Socket Head Screw With Washe |
$2.38 |
|
|
| 14 | M-193616 | Timing Control Chain |
$83.39 |
|
|
| 15 | M-222310 | Cpl Upper Fixed Runner |
$54.26 |
|
|
| 16 | M-16043124 | Screw |
$1.66 |
|
|
| 17 | M-194262 | Shoulder. |
$29.17 |
|
|
| 18 | M-175282 | Roller Cage 28X35X16 |
$13.82 |
|
|
| 19 | M-175611 | Centering Dowel |
$3.58 |
|
|
| 20 | M-212970 | Timing Control Transmission |
$983.28 |
|
|
| 21 | M-11181574 | Tapered Rubber Washer D. 5.3 |
$1.66 |
|
|
| 22 | M-14304224 | Screw |
$1.66 |
|
|
| 23 | M-230652 | Hydraulic Chain Tensioner |
$82.97 |
|
|
| 24 | M-231619 | Socket Head Screw With Washe |
$2.38 |
|
|
| 25 | M-190060 | Hydraulic Tensioner Bushing |
$58.43 |
|
|
| 26 | M-323282 | Gasket |
$4.01 |
|
|
| 27 | M-193565 | Transmission Toothed Wheel Z |
$165.15 |
|
|
| 28 | M-196683 | Fixed Chain Tensioner |
$39.40 |
|
|
| 29 | M-175306 | Shouldering On Runner Fulcru |
$5.58 |
|
|
| 30 | M-259031 | Front Crankcase Cover Comple |
$9,138.61 |
|
|
| 31 | M-224314 | Plug M 12X1.25 |
$6.35 |
|
|
| 32 | M-10296160 | Gasket 12- 18X 1 |
$1.08 |
|
|
| 33 | M-14324940 | Tapered Threaded Plug 14X1 |
$1.69 |
|
|
| 34 | M-322502 | Front Cover Gasket |
$37.91 |
|
|
| 35 | M-183010 | O-Ring D. 32.93 |
$3.58 |
|
|
| 36 | M-231622 | Socket Head Screw With Washe |
$1.09 |
|
|
| 37 | M-10589624 | Socket Head Screw M6X80 |
$59.27 |
|
|
| 38 | M-11197774 | Washer |
$2.17 |
|
|
| 39 | M-190171 | Spacer For Hydraulic Tension |
$13.18 |
|
|
| 40 | M-192069 | O-Ring D. 26X1.5 |
$1.66 |
|
