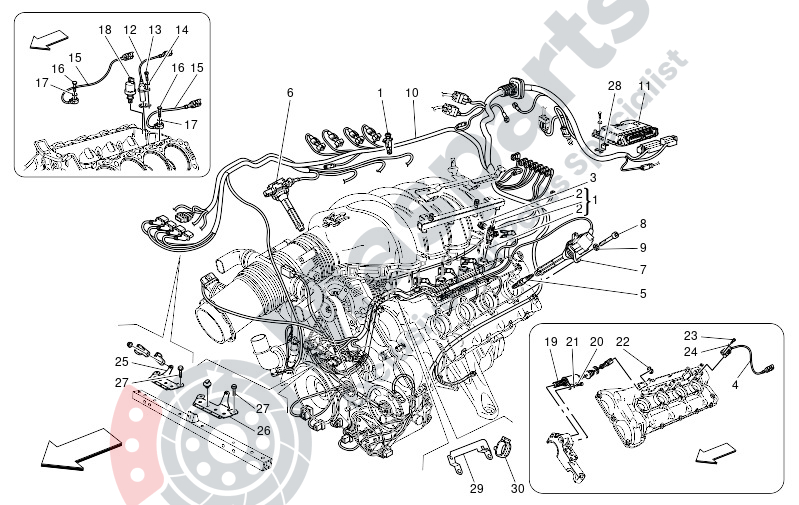

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-213635 | Electro-Injector Ev14 |
$296.28 |
|
|
| 2 | M-133902 | O-Ring D.7.8X3.6 |
$10.26 |
|
|
| 3 | M-144730 | Injector Retaining Clip |
$5.79 |
|
|
| 4 | M-201990 | Phase Sensor. |
$99.06 |
|
|
| 5 | M-192637 | Ngk-Pmr Spark Plug |
$23.04 |
|
|
| 6 | M-203771 | Single Ignition Coil 700 Mm |
$167.36 |
|
|
| 7 | M-203770 | Single Ignition Coil 900 Mm |
$167.36 |
|
|
| 8 | M-201599 | Socket Head Screw M 6X 20 |
$2.11 |
|
|
| 9 | M-11197774 | Washer |
$2.26 |
|
|
| 10 | M-212171 | Engine Injection Wiring M13 |
$2,310.98 |
|
|
| 11 | M-980139471 | Engine Ecu 139 My05 Vin |
$1,878.04 |
|
|
| 12 | M-230760 | Rpm Sensor With Bank |
$101.22 |
|
|
| 13 | M-14305724 | Screw |
$1.74 |
|
|
| 14 | M-11197774 | Washer |
$2.26 |
|
|
| 16 | M-16043834 | Hex Head Screw M 8X30 |
$1.21 |
|
|
| 17 | M-11198074 | Tapered Rubber Washer D8.5-1 |
$1.37 |
|
|
| 18 | M-201672 | Oil Pressure Transmitter. |
$6.09 |
|
|
| 19 | M-212423 | Solenoid Valve Variator Cont |
$591.33 |
|
|
| 20 | M-14433124 | Screw For Cam Cover Assem |
$1.74 |
|
|
| 21 | M-11197774 | Washer |
$2.26 |
|
|
| 22 | M-11087374 | 3-Point Circlip D.12 |
$2.21 |
|
|
| 23 | M-14305224 | Socket Head Screw M 6X 16 |
$2.30 |
|
|
| 24 | M-11197774 | Washer |
$2.26 |
|
|
| 25 | M-203583 | R.H.Bracket. |
$20.40 |
|
|
| 26 | M-197718 | Coil Wiring Mounting Lh Brac |
$16.26 |
|
|
| 27 | M-11612624 | H.H. Screw M6X20 With Tap.Wa |
$1.89 |
|
|
| 28 | M-188239 | Bracket. |
$3.10 |
|
