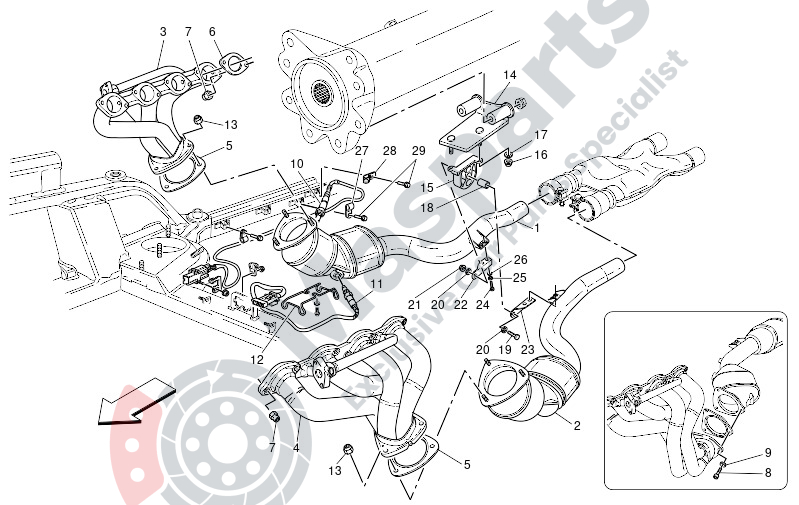

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-201255 | Cpl Rh Exhaust Manifold |
$1,318.81 |
|
|
| 4 | M-201256 | Cpl Lh Exhaust Manifold |
$623.24 |
|
|
| 5 | M-189211 | Gasket -Valid For Usa And Cd |
$18.56 |
|
|
| 6 | M-182868 | Heads And Exhaust Manifold G |
$4.13 |
|
|
| 7 | M-138392 | Nut For Exhaust Manifold |
$3.47 |
|
|
| 10 | M-182837 | Front Lambda Sensor |
$253.63 |
|
|
| 11 | M-191412 | Rear Oxygen Sensor L=700 |
$318.80 |
|
|
| 13 | M-138392 | Nut For Exhaust Manifold |
$3.47 |
|
|
| 14 | M-209775 | Housing Bracket For Cat.Conv |
$42.02 |
|
|
| 16 | M-175283 | Nut. |
$2.72 |
|
|
| 17 | M-12638524 | Washer For Abs/Asr Hydrau |
$1.74 |
|
|
| 18 | M-190622 | Spacer. |
$6.55 |
|
|
| 19 | M-16044324 | Hex Head Screw M 8X55 |
$1.89 |
|
|
| 20 | M-12646724 | Washer |
$1.74 |
|
|
| 21 | M-175283 | Nut. |
$2.72 |
|
|
| 22 | M-214777 | Catalytic Converter Support |
$26.07 |
|
|
| 23 | M-214778 | L.H. Cat.Converter Support B |
$13.09 |
|
|
| 24 | M-16043424 | Screw |
$3.97 |
|
|
| 25 | M-12602474 | Washer. |
$1.74 |
|
|
| 26 | M-10519624 | Washer |
$1.74 |
|
|
| 27 | M-10418301 | Bracket. |
$1.13 |
|
|
| 28 | M-10441290 | Clamp With Rubber Pad |
$7.97 |
|
|
| 29 | M-13833011 | Tebd Screw M5X10 |
$2.11 |
|
