Diagram image not available

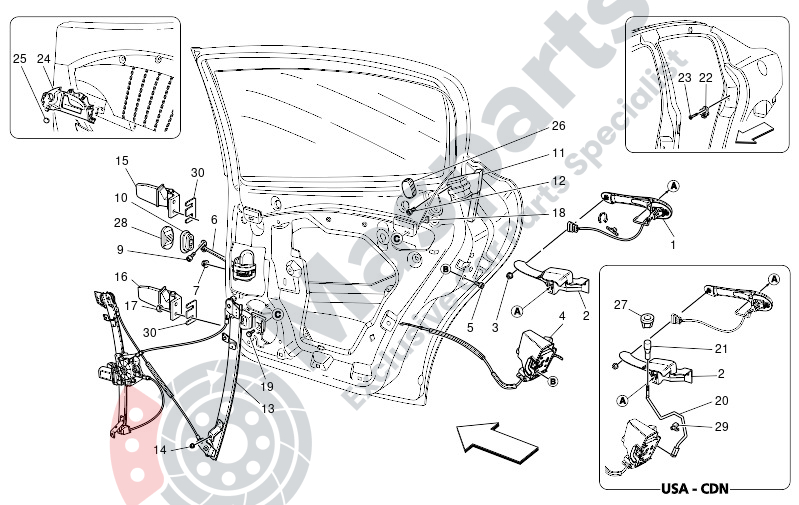

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-68808800 | Rh Door Ext.Handle |
$242.04 |
|
|
| 2 | M-67865600 | R.H.Rear Handle Box. |
$88.36 |
|
|
| 3 | M-14040514 | Nut. |
$1.74 |
|
|
| 4 | M-68206400 | R.H.Rear Door Lock. |
$168.56 |
|
|
| 5 | M-67077900 | Screw. |
$2.48 |
|
|
| 6 | M-82519300 | Rear Door Stop Tie Rod. |
$232.12 |
|
|
| 7 | M-14040614 | Nut |
$1.74 |
|
|
| 9 | M-68808500 | Screw |
$3.53 |
|
|
| 10 | M-67078800 | Door Stop Tie Rod Gasket. |
$13.11 |
|
|
| 11 | M-67271400 | R.H.Rear Glass Guide |
$19.20 |
|
|
| 12 | M-46401657 | Screw |
$2.48 |
|
|
| 13 | M-84934400 | Rear Rh Power Window Mechanism |
$518.87 |
|
|
| 14 | M-14040614 | Nut |
$1.74 |
|
|
| 15 | M-67880900 | Upper R.H.Door Hinge |
$115.95 |
|
|
| 16 | M-66814900 | Rear Door Rh Lower Hinge |
$168.56 |
|
|
| 17 | M-15501025 | Hex. Nut M8 |
$1.23 |
|
|
| 18 | M-67712400 | Plate. |
$1.19 |
|
|
| 19 | M-16296924 | Screw |
$2.12 |
|
|
| 22 | M-85321500 | Striker |
$21.37 |
|
|
| 23 | M-67999500 | Screw. |
$2.50 |
|
|
| 24 | M-980139377 | Rear Rh Door Opening Handle |
$196.48 |
|
|
| 25 | M-66939600 | Plug. |
$8.96 |
|
|
| 26 | M-67886000 | Plug. |
$9.73 |
|
|
| 28 | M-67079200 | R.H.Tie Rod Rear Gasket. |
$7.38 |
|
|
| 30 | M-67274900 | Front Door Shimming Plate |
$19.23 |
|
