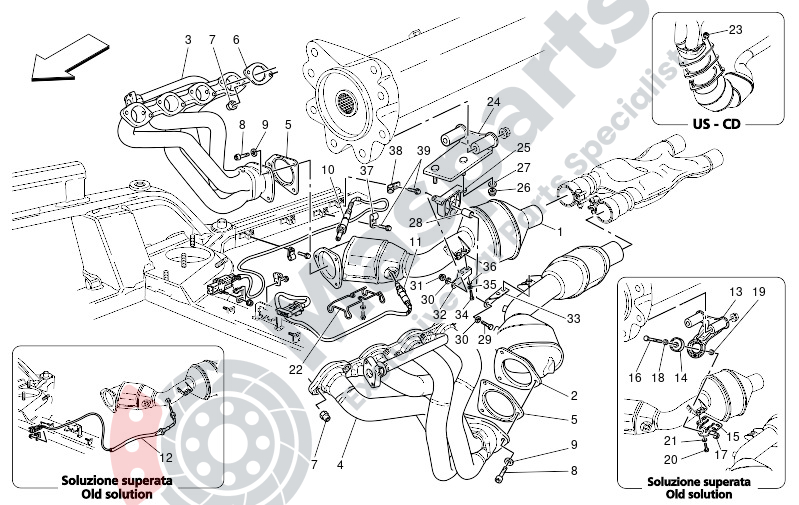

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-211199 | Cpl Rh Catalytic Converter |
$2,724.89 |
|
|
| 2 | M-211200 | Cpl Lh Catalytic Converter |
$2,724.89 |
|
|
| 4 | M-195118 | Cpl Lh Exhaust Manifold |
$644.77 |
|
|
| 5 | M-196884 | Gasket Bet. Manif. And Pre-C |
$33.51 |
|
|
| 6 | M-182868 | Heads And Exhaust Manifold G |
$4.13 |
|
|
| 7 | M-138392 | Nut For Exhaust Manifold |
$3.48 |
|
|
| 8 | M-190213 | Socket Head Screw M 8X 25 |
$3.53 |
|
|
| 9 | M-11193874 | Washer |
$1.37 |
|
|
| 10 | M-199612 | Front Oxygen Sensor L=1000M |
$178.64 |
|
|
| 11 | M-191412 | Rear Oxygen Sensor L=700 |
$319.15 |
|
|
| 12 | M-199613 | Thermocouple For Catalytic C |
$203.73 |
|
|
| 14 | M-195766 | Catalytic Converter Support |
$11.37 |
|
|
| 15 | M-195767 | Bracket. |
$79.95 |
|
|
| 16 | M-16044024 | Screw M8X40 |
$1.37 |
|
|
| 17 | M-14058519 | Nut. |
$1.83 |
|
|
| 18 | M-12638524 | Washer For Abs/Asr Hydrau |
$1.74 |
|
|
| 19 | M-12648424 | Washer |
$1.99 |
|
|
| 20 | M-16043224 | Screw For Rubber Exhaust |
$1.74 |
|
|
| 21 | M-12601374 | Washer |
$1.37 |
|
|
| 24 | M-209775 | Housing Bracket For Cat.Conv |
$42.07 |
|
|
| 26 | M-175283 | Nut. |
$2.73 |
|
|
| 27 | M-12638524 | Washer For Abs/Asr Hydrau |
$1.74 |
|
|
| 28 | M-190622 | Spacer. |
$6.56 |
|
|
| 29 | M-16044324 | Hex Head Screw M 8X55 |
$1.89 |
|
|
| 30 | M-12646724 | Washer |
$1.74 |
|
|
| 31 | M-175283 | Nut. |
$2.73 |
|
|
| 32 | M-214777 | Catalytic Converter Support |
$26.10 |
|
|
| 33 | M-214778 | L.H. Cat.Converter Support B |
$13.11 |
|
|
| 34 | M-16043424 | Screw |
$3.97 |
|
|
| 35 | M-12602474 | Washer. |
$1.74 |
|
|
| 36 | M-10519624 | Washer |
$1.74 |
|
|
| 37 | M-10418301 | Bracket. |
$1.13 |
|
|
| 38 | M-10441290 | Clamp With Rubber Pad |
$7.98 |
|
|
| 39 | M-13831811 | Nut For Ige Electronic Mo |
$1.74 |
|
