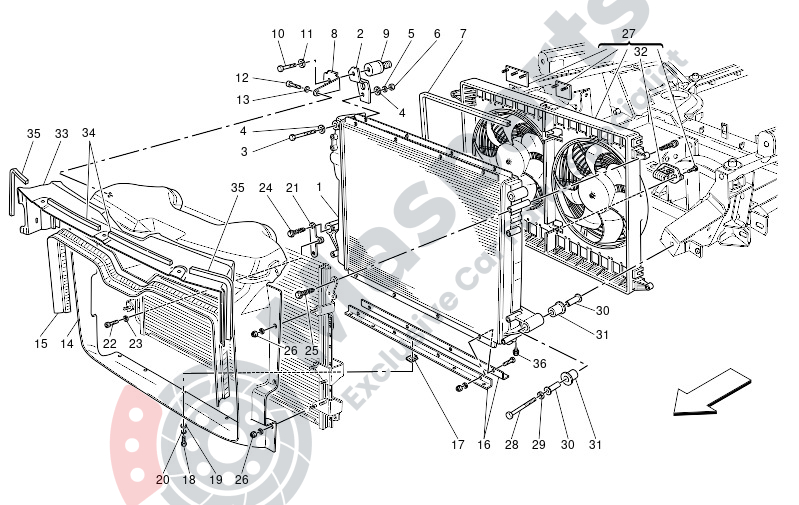

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-181097 | Water Radiator |
$477.04 |
|
|
| 2 | M-201372 | R.H.Bracket For Upper Fixing |
$7.18 |
|
|
| 3 | M-16044524 | Screw |
$2.25 |
|
|
| 4 | M-12601379 | Washer |
$1.32 |
|
|
| 5 | M-12646724 | Washer |
$1.67 |
|
|
| 6 | M-16100814 | Nut For Rear Differential |
$1.67 |
|
|
| 7 | M-193556 | Rubber Profile |
$2.13 |
|
|
| 8 | M-199513 | R.H.Upper Bracket |
$6.30 |
|
|
| 9 | M-181114 | Rubber Pad |
$11.85 |
|
|
| 10 | M-16043021 | Screw. |
$1.67 |
|
|
| 11 | M-12601379 | Washer |
$1.32 |
|
|
| 12 | M-14305724 | Screw |
$1.67 |
|
|
| 13 | M-12601279 | Washer |
$1.32 |
|
|
| 15 | M-198352 | Duct Gasket |
$14.36 |
|
|
| 16 | M-193538 | Air Conveyor Support Bracket |
$24.41 |
|
|
| 17 | M-67257100 | Bracket |
$1.75 |
|
|
| 18 | M-13274077 | Screw |
$1.67 |
|
|
| 19 | M-12601174 | Washer |
$1.55 |
|
|
| 20 | M-12638178 | Washer |
$1.75 |
|
|
| 21 | M-199546 | R.H.Bracket. |
$4.97 |
|
|
| 22 | M-14305724 | Screw |
$1.67 |
|
|
| 23 | M-12601279 | Washer |
$1.32 |
|
|
| 24 | M-15699804 | Screw |
$1.75 |
|
|
| 25 | M-15699904 | Screw. |
$2.03 |
|
|
| 26 | M-102741 | Nut |
$1.67 |
|
|
| 27 | M-265780 | Cpl Hood With Electric Fan |
$606.92 |
|
|
| 28 | M-16044824 | Screw |
$2.39 |
|
|
| 29 | M-12646724 | Washer |
$1.67 |
|
|
| 30 | M-197585 | Bushing. |
$6.40 |
|
|
| 31 | M-197584 | Rubber Bushing |
$5.57 |
|
|
| 32 | M-263140 | Electric Fan Resistor 0.23 O |
$89.11 |
|
|
| 33 | M-67069600 | Cross Member Side Air Duct |
$93.79 |
|
|
| 34 | M-68199400 | Gasket |
$1.49 |
|
|
| 35 | M-68199500 | Gasket |
$1.48 |
|
|
| 36 | M-980139638 | Radiator Lower Plug |
$10.50 |
|
