Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

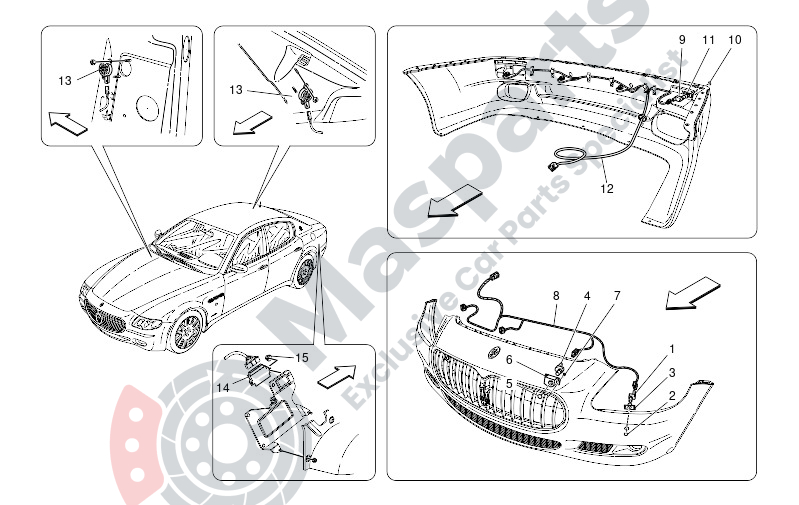

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-239082 | Parking Sensor |
€155,66 |
|
|
| 2 | M-81544800 | Transparent Silicon Ring |
€16,28 |
|
|
| 3 | M-80371200 | Front Parking Sensor Sleeve |
€6,16 |
|
|
| 4 | M-239083 | Parking Sensor |
€129,00 |
|
|
| 5 | M-80380200 | Black Silicon Ring |
€1,86 |
|
|
| 6 | M-81089500 | Rh Park.Sens. Sleeve On Rad. |
€6,16 |
|
|
| 7 | M-16082401 | Screw |
€1,58 |
|
|
| 8 | M-245221 | Front Bumper Wiring Harness |
€623,50 |
|
|
| 9 | M-239082 | Parking Sensor |
€155,66 |
|
|
| 10 | M-80380300 | Transparent Silicon Ring |
€15,00 |
|
|
| 11 | M-80371300 | Rear Parking Sensor Sleeve |
€6,16 |
|
|
| 12 | M-235148 | Rear Bumber Wiring |
€647,58 |
|
|
| 13 | M-223469 | Parking Sensor Buzzer |
€33,97 |
|
|
| 14 | M-350592 | Sensors Parking Control Uni |
€149,96 |
|
|
| 15 | M-14059114 | Nut |
€1,46 |
|
