Diagram image not available

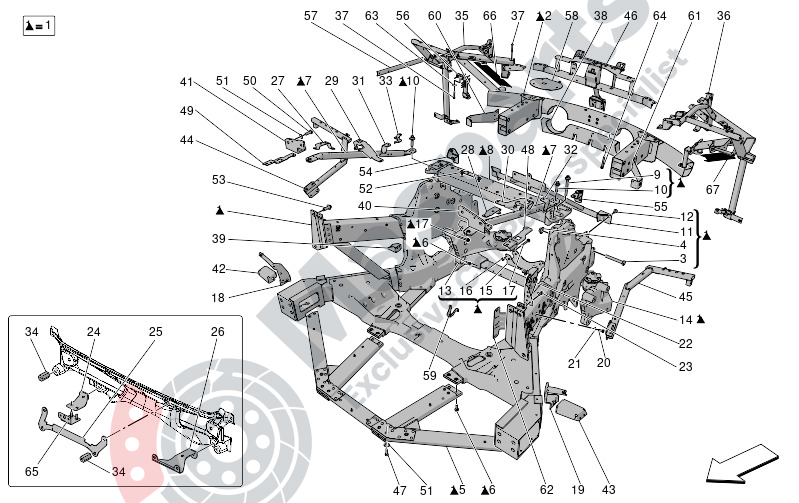

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670158329 | Rear Frame |
€9.556,55 |
|
|
| 2 | M-670216672 | Rear Crash Box Bar |
€888,25 |
|
|
| 3 | M-670173670 | Screw |
€13,89 |
|
|
| 4 | M-675000082 | Nut |
€3,71 |
|
|
| 5 | M-670216673 | Fuel Bracket |
€516,12 |
|
|
| 6 | M-670176387 | Screw |
€13,89 |
|
|
| 7 | M-670173635 | Tie Rod |
€62,48 |
|
|
| 8 | M-670173636 | Cross Member |
€823,65 |
|
|
| 9 | M-670173669 | Screw |
€26,68 |
|
|
| 10 | M-675001345 | Screw |
€1,87 |
|
|
| 11 | M-670173637 | Bracket |
€268,64 |
|
|
| 12 | M-675000174 | Screw |
€1,41 |
|
|
| 13 | M-670173638 | Bracket |
€590,64 |
|
|
| 14 | M-670173640 | Bracket |
€590,64 |
|
|
| 15 | M-670173642 | Bracket |
€78,66 |
|
|
| 16 | M-675001182 | Nut |
€3,00 |
|
|
| 17 | M-670173681 | Screw |
€31,92 |
|
|
| 18 | M-670160258 | Rh Side Member |
€96,05 |
|
|
| 19 | M-670160259 | Lh Side Member |
€96,05 |
|
|
| 20 | M-675001355 | Screw |
€1,88 |
|
|
| 21 | M-675001364 | Washer |
€1,27 |
|
|
| 22 | M-670158009 | Relays And Fuses Case |
€41,03 |
|
|
| 23 | M-675001384 | Screw |
€1,20 |
|
|
| 24 | M-670177633 | Bracket |
€19,41 |
|
|
| 25 | M-670177634 | Bracket |
€23,37 |
|
|
| 26 | M-670177635 | Bracket |
€22,54 |
|
|
| 27 | M-670177636 | Bracket |
€20,52 |
|
|
| 28 | M-670177637 | Bracket |
€20,52 |
|
|
| 29 | M-670219339 | Bracket |
€37,44 |
|
|
| 30 | M-670219340 | Bracket |
€37,44 |
|
|
| 31 | M-670177641 | Bracket |
€12,14 |
|
|
| 32 | M-670177642 | Bracket |
€12,14 |
|
|
| 33 | M-670177643 | Bracket |
€15,46 |
|
|
| 34 | M-670177644 | Spacer |
€6,26 |
|
|
| 35 | M-670303048 | Right Fender Mount Bracket |
€567,64 |
|
|
| 36 | M-670303050 | Left Fender Mount Bracket |
€567,64 |
|
|
| 37 | M-675001398 | Screw He M6X50 |
€1,05 |
|
|
| 39 | M-670174695 | Rear Lower Report |
€40,63 |
|
|
| 40 | M-670173644 | Bracket |
€48,39 |
|
|
| 41 | M-670173643 | Bracket |
€48,39 |
|
|
| 42 | M-670215578 | Insert |
€43,46 |
|
|
| 43 | M-670215535 | Insert |
€43,46 |
|
|
| 44 | M-670174461 | Insert |
€114,80 |
|
|
| 45 | M-670174463 | Insert |
€119,00 |
|
|
| 46 | M-670156858 | Rear Cross Member |
€230,00 |
|
|
| 47 | M-675001456 | Screw |
€4,97 |
|
|
| 48 | M-670213032 | Plate |
€25,76 |
|
|
| 49 | M-670213031 | Plate |
€25,76 |
|
|
| 50 | M-675001346 | Screw |
€10,21 |
|
|
| 51 | M-675001347 | Washer |
€2,48 |
|
|
| 52 | M-670213280 | Remote Start Antenna Bracket |
€23,37 |
|
|
| 53 | M-675001391 | Screw |
€28,52 |
|
|
| 54 | M-670174706 | Rh Spring Seal Bracket |
€44,25 |
|
|
| 55 | M-670174707 | Bracket |
€44,25 |
|
|
| 56 | M-670213864 | Bracket |
€72,40 |
|
|
| 57 | M-670174460 | Bracket |
€14,63 |
|
|
| 58 | M-670174750 | Rear Crossbar Plate |
€16,19 |
|
|
| 59 | M-670174697 | Lh Strut Report |
€29,50 |
|
|
| 60 | M-670174699 | Rear Rh Locary Fixing Supp B |
€40,20 |
|
|
| 61 | M-670174700 | Rear Lh Locary Fixing Supp B |
€40,20 |
|
|
| 62 | M-670158010 | Relays And Fuses Case |
€30,27 |
|
|
| 63 | M-675001253 | Washer |
€1,76 |
|
|
| 65 | M-670215523 | Bracket |
€31,65 |
|
|
| 66 | M-670306937 | Rh Black Protective Film |
€29,72 |
|
|
| 67 | M-670306938 | Lh Black Protective Film |
€29,72 |
|
