Diagram image not available

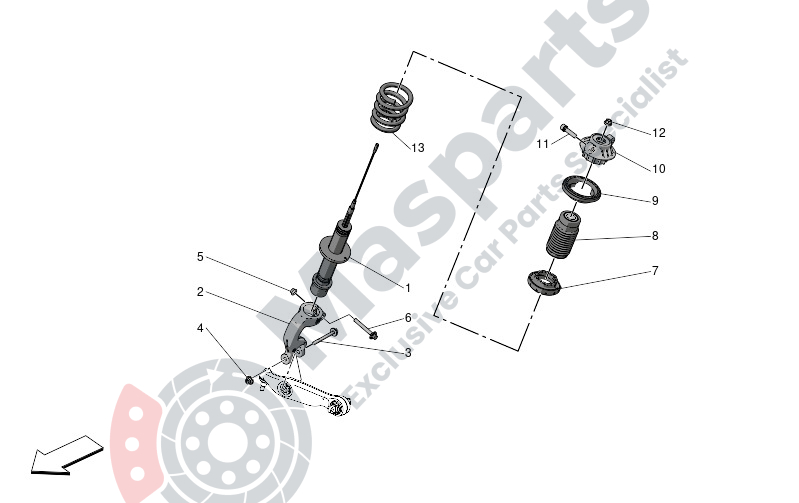

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670181619 | Rear Shock Absorber |
€929,20 |
|
|
| 2 | M-670160353 | Clevis Rod |
€247,48 |
|
|
| 3 | M-675001195 | Screw |
€8,28 |
|
|
| 4 | M-675000127 | Nut |
€1,86 |
|
|
| 5 | M-675001189 | Nut |
€1,93 |
|
|
| 6 | M-675000051 | Screw ˇ |
€2,25 |
|
|
| 7 | M-675001031 | Circlip |
€18,95 |
|
|
| 8 | M-670160350 | Rubber |
€26,50 |
|
|
| 9 | M-675001030 | Circlip |
€18,95 |
|
|
| 10 | M-670156060 | Elastic Support |
€147,20 |
|
|
| 11 | M-670156063 | Screw |
€8,19 |
|
|
| 12 | M-675000586 | Nut ˇ |
€1,26 |
|
|
| 13 | M-670182003 | Rear Suspesion Spring |
€177,56 |
|
